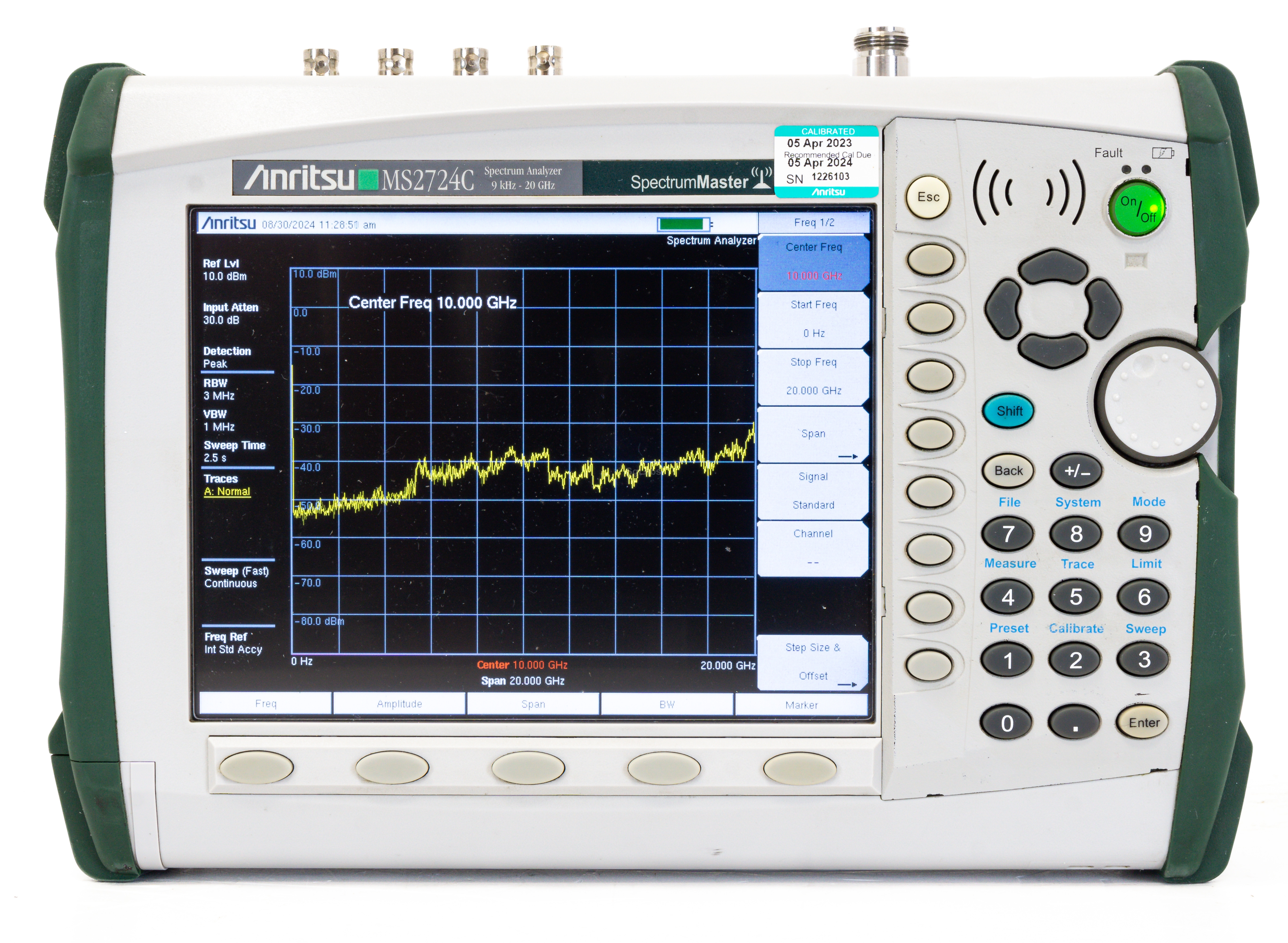

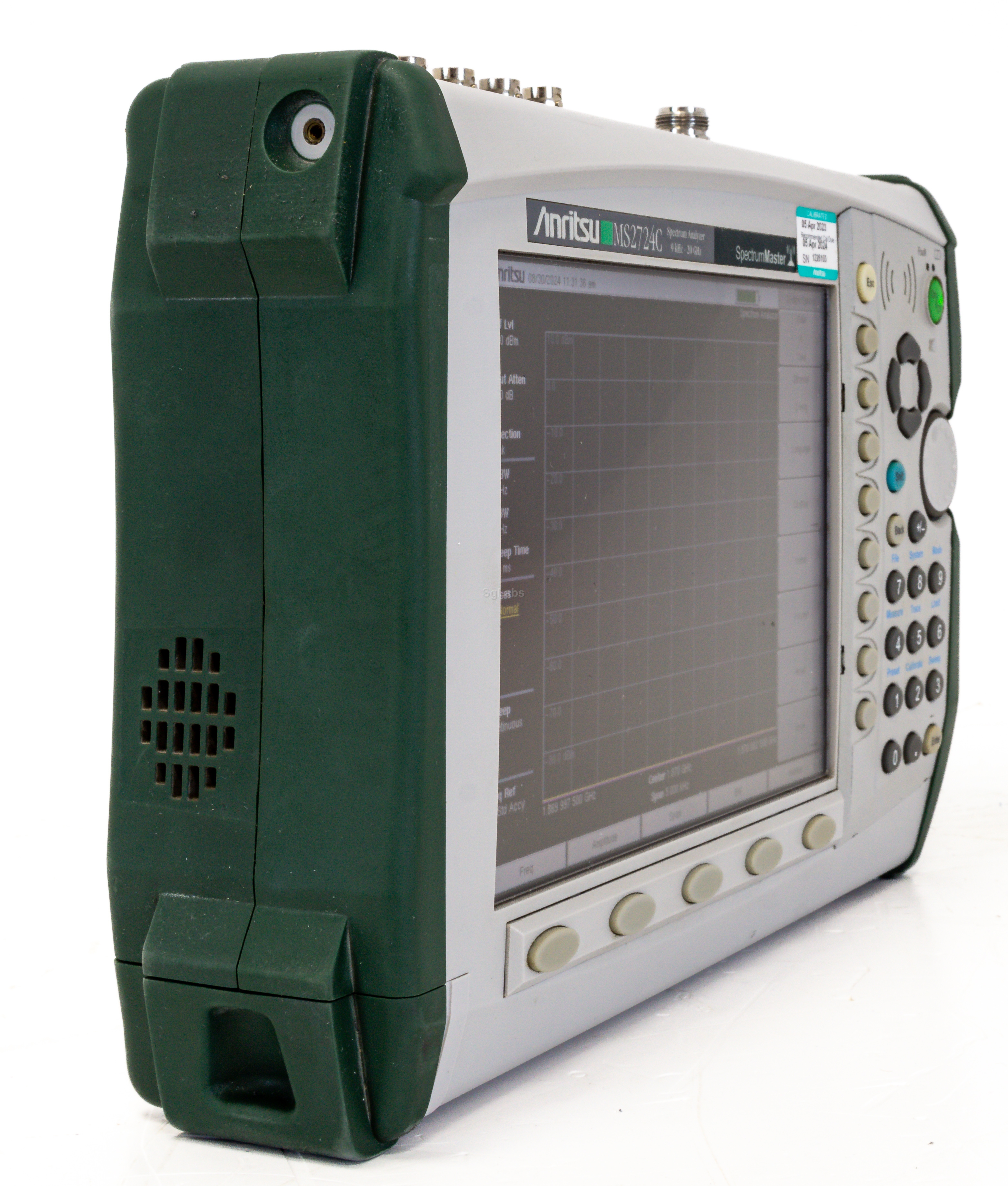

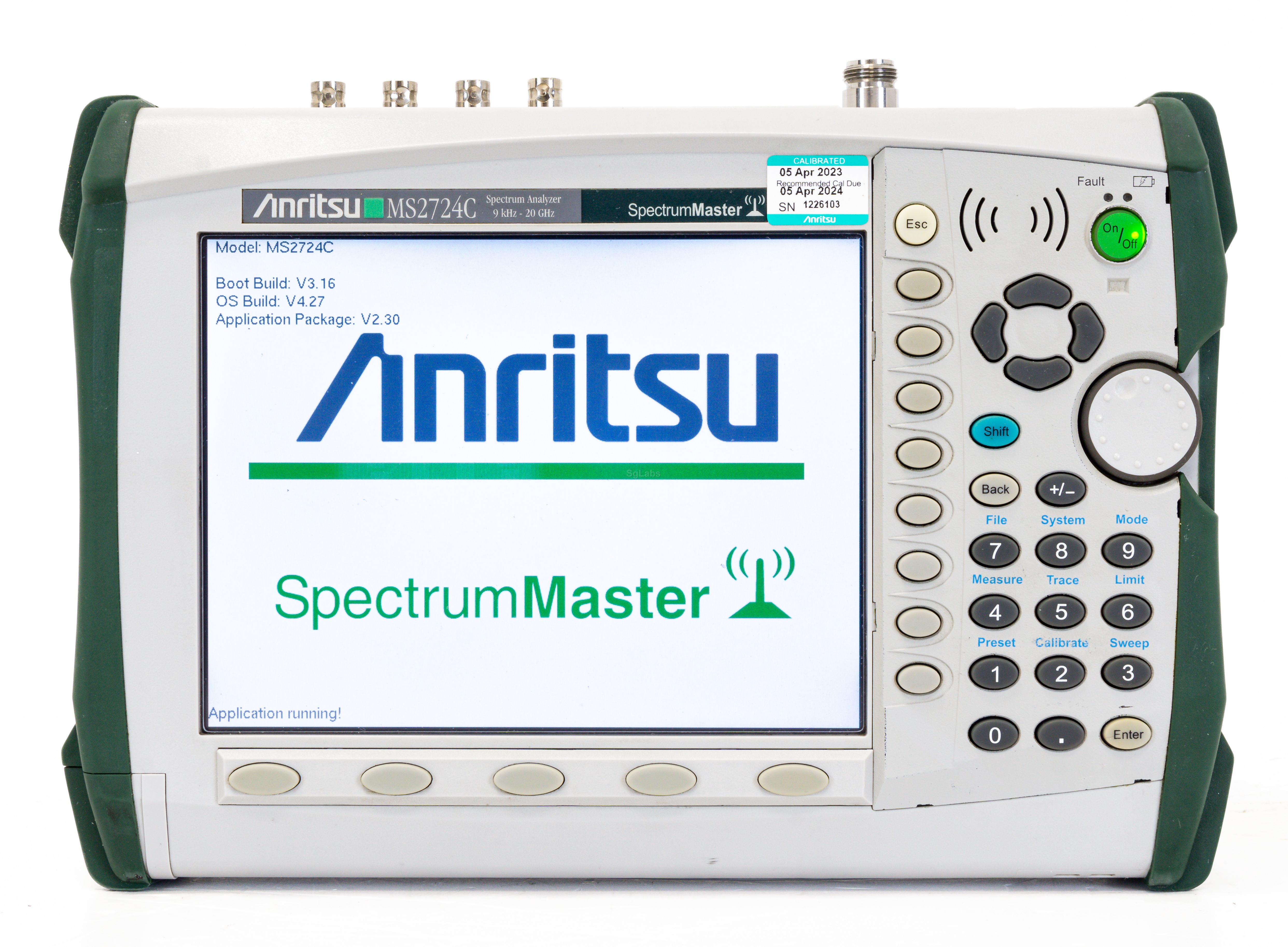

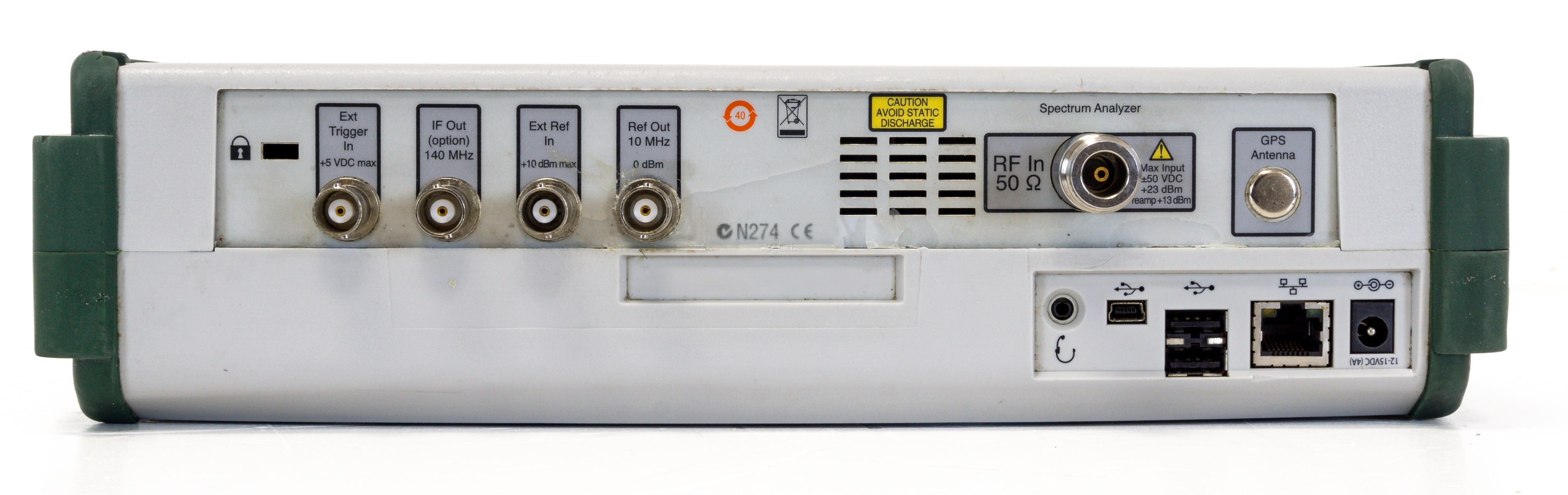

Anritsu MS2724C Spectrum Analyzer Master 20 GHz
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Anritsu’s high performance handheld spectrum analyzer provides the wireless professional the performance needed for the most demanding measurements in harsh RF and physical environments. Whether it is for spectrum monitoring, broadcast proofing, interference analysis, RF and microwave measurements, regulatory compliance, or Wi-Fi and wireless network measurements, the Spectrum Master is the ideal instrument for making fast and reliable measurements.
Features
  • Measure: Occupied Bandwidth, Channel Power, ACPR, C/I
  • Interference Analyzer: Spectrogram, Signal Strength, RSSI
  • Dynamic Range: > 104 dB in 1 Hz RBW
  • DANL: –160 dBm in 1 Hz RBW
  • Phase Noise: –100 dBc/Hz @ 10 kHz offset at 1 GHz
  • Frequency Accuracy: ±25 ppb with GPS On
  • 1 Hz to 10 MHz Resolution Bandwidth (RBW)
  • Traces: Normal, Max Hold, Min Hold, Average, # of Averages
  • Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
  • Markers: 6, each with a Delta Marker, or 1 Reference with 6 Deltas
  • Limit Lines: up to 40 segments with one-button envelope creation
  • Trace Save-on-Event: crossing limit line or sweep complete
  • Demodulator: AM FM
  • Display: Color LCD
  • Max. Frequency: 20 GHz
  • Min. Frequency: 9 kHZ
Price
 € 6.900,00
