Anritsu MS2712E Spectrum Master Handheld Spectrum Analyzer 4 GHz

You are here: Spectrum Analyzer » Digital

Anritsu MS2712E Spectrum Master Handheld Spectrum Analyzer 4 GHz

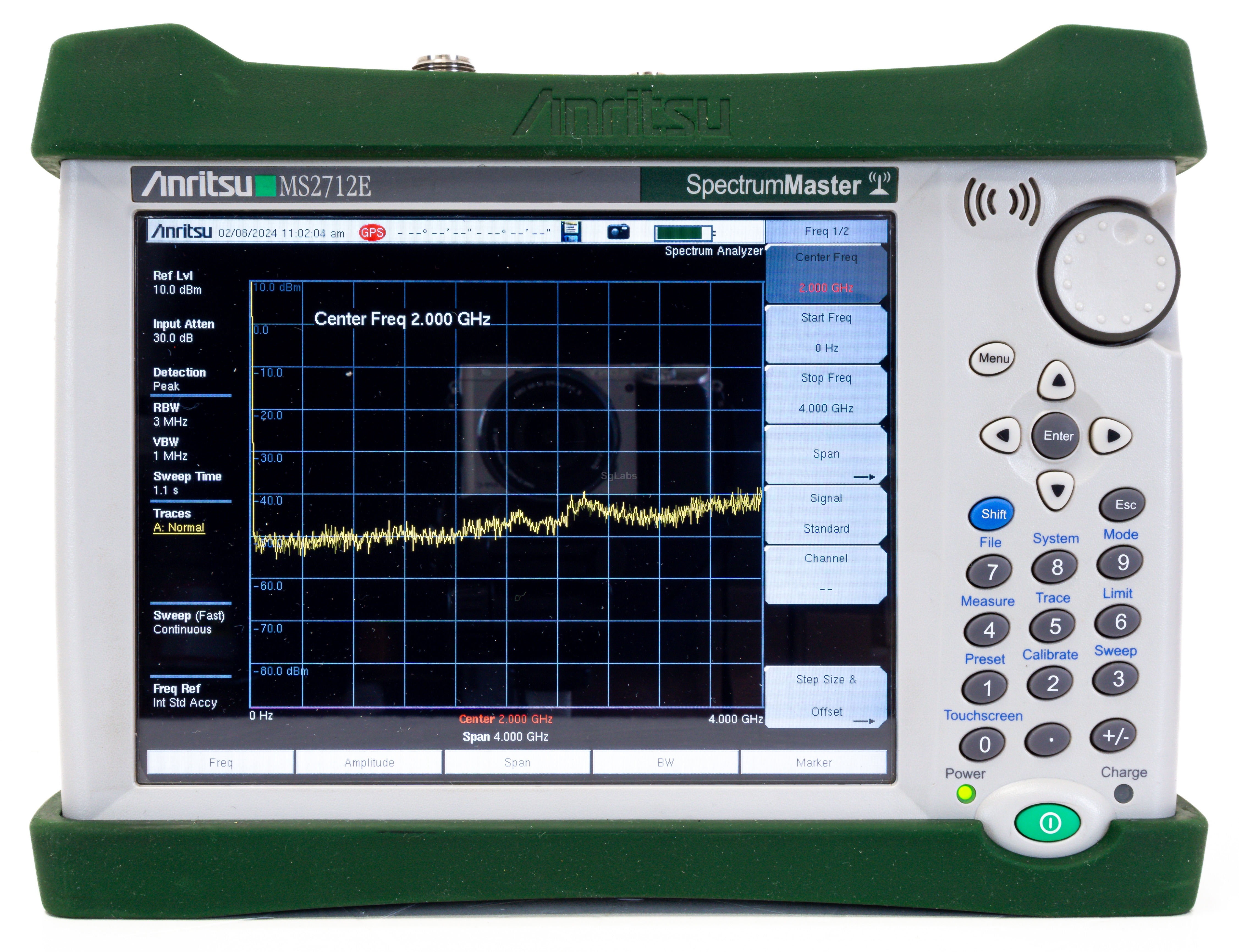

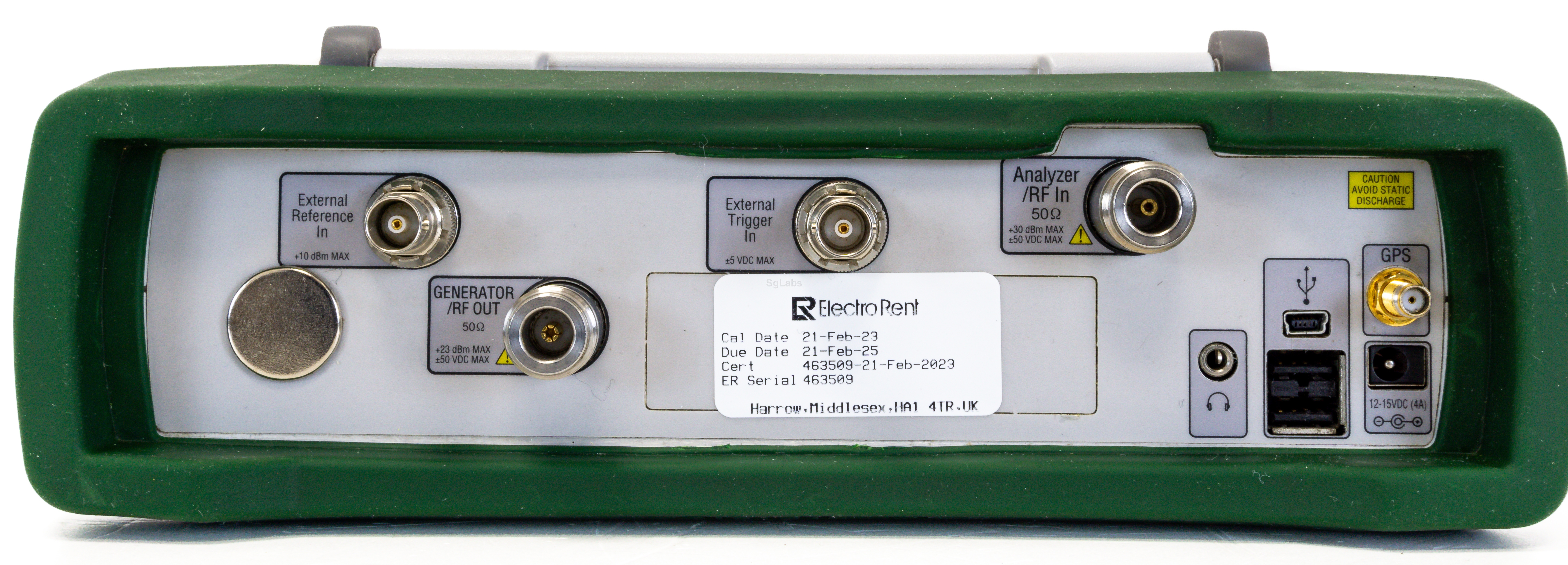

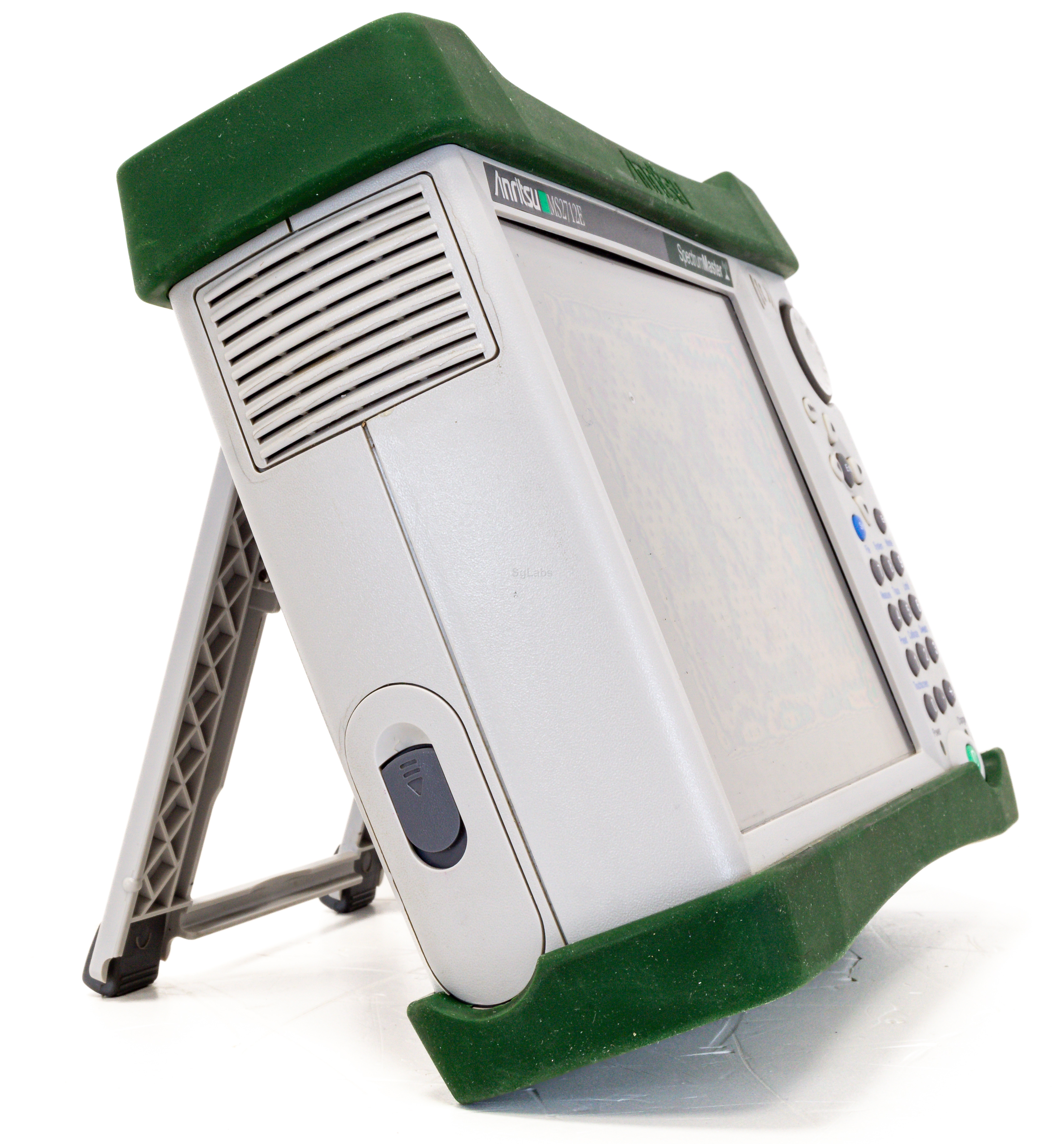

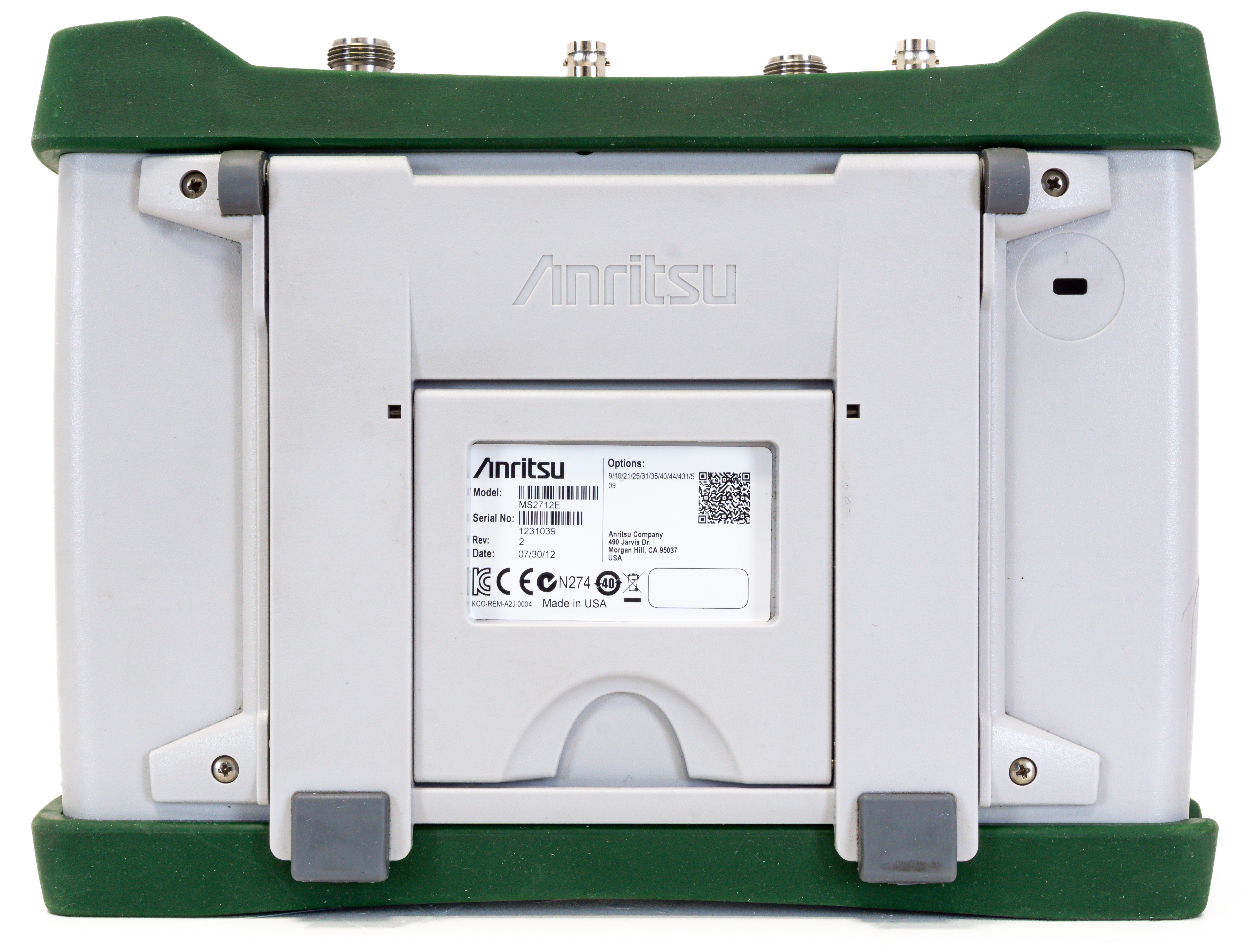

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Anritsu’s MS2712E Spectrum Master™ spectrum analyzer is designed to handle the most punishing field conditions and allow you to monitor, locate, identify, and analyze a broad range of cellular, land mobile radio, Wi-Fi, and broadcast signals. With a rich array of configuration options, these multifunctional handhelds eliminate the need for you to learn and carry multiple instruments when locating and identifying signals over wide frequency ranges. There is no other spectrum analyzer in this class that can deliver this level of performance.
Features
  • 9 kHz to 4 GHz
  • Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Spectral Emission Mask, Field Strength
  • Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID, Interference Mapping
  • Tracking Generator, also functions as CW source
  • Coverage Mapping: Outdoors or Indoors
  • 3GPP Signal Analyzers GSM/EDGE, W-CDMA/HSDPA, TD-SCDMA/HSDPA, LTE (FDD and/or TDD), NB-IoT
  • 3GPP2 Signal Analyzers cdmaONE/CDMA2000 1X, CDMA2000 1xEV-DO
  • IEEE 802.16 Signal Analyzers Fixed WiMAX, Mobile WiMAX
  • ISDB-T Signal Analyzer
  • Dynamic Range: > 102 dB in 1 Hz RBW
  • DANL: -162 dBm in 1 Hz RBW
  • Phase Noise: -100 dBc/Hz max @ 10 kHz offset at 1 GHz
  • Frequency Accuracy: < ± 50 ppb with GPS On
  • Display: Color LCD
  • Max. Frequency: 4 GHz
  • Min. Frequency: 9 kHz
  • Min. Resolution: 1 HZ
  • Tracking generator: Optional
Price
 € 3.900,00
