Anritsu 42N50A Attenuator 18 GHz 50W

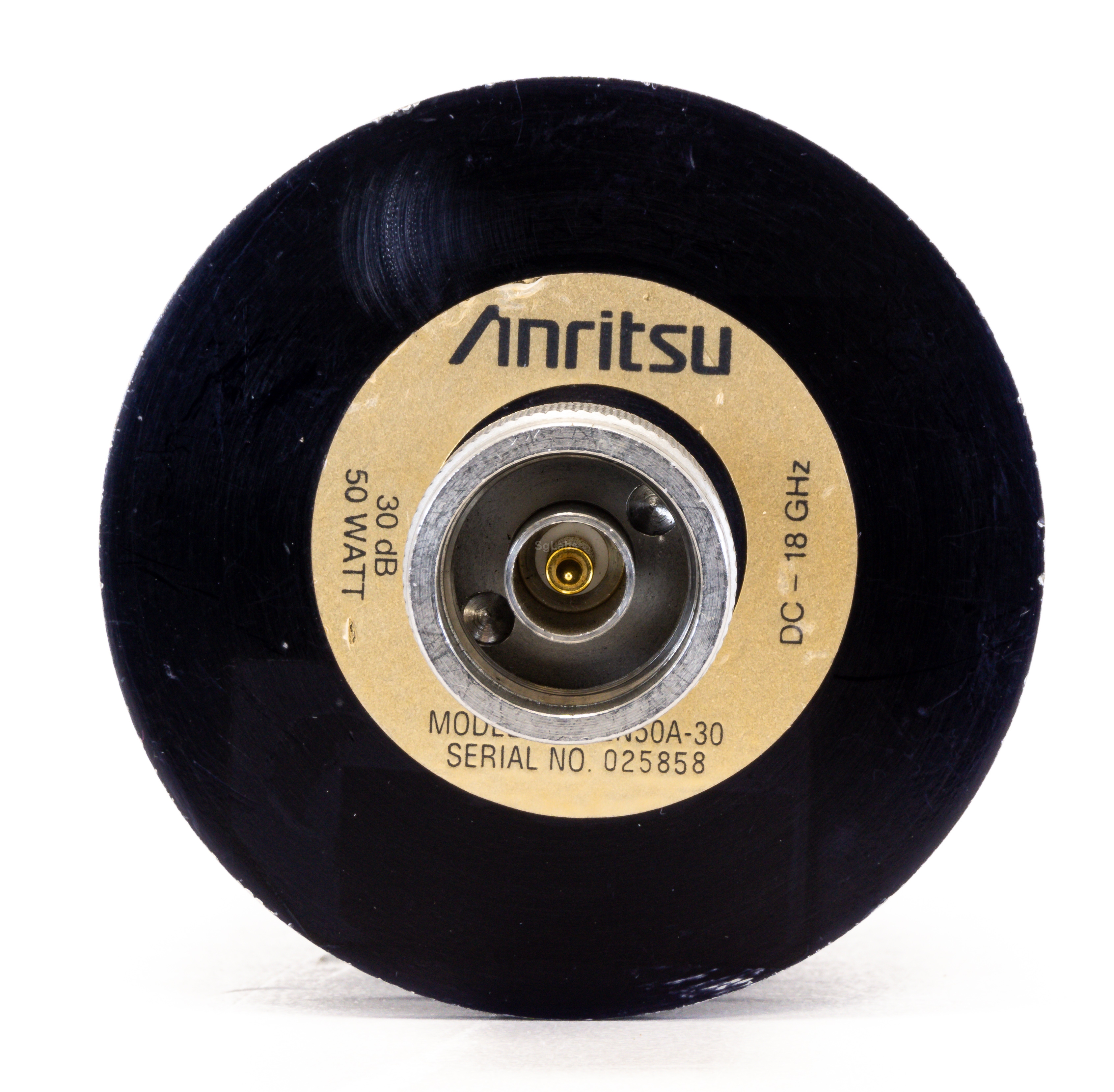

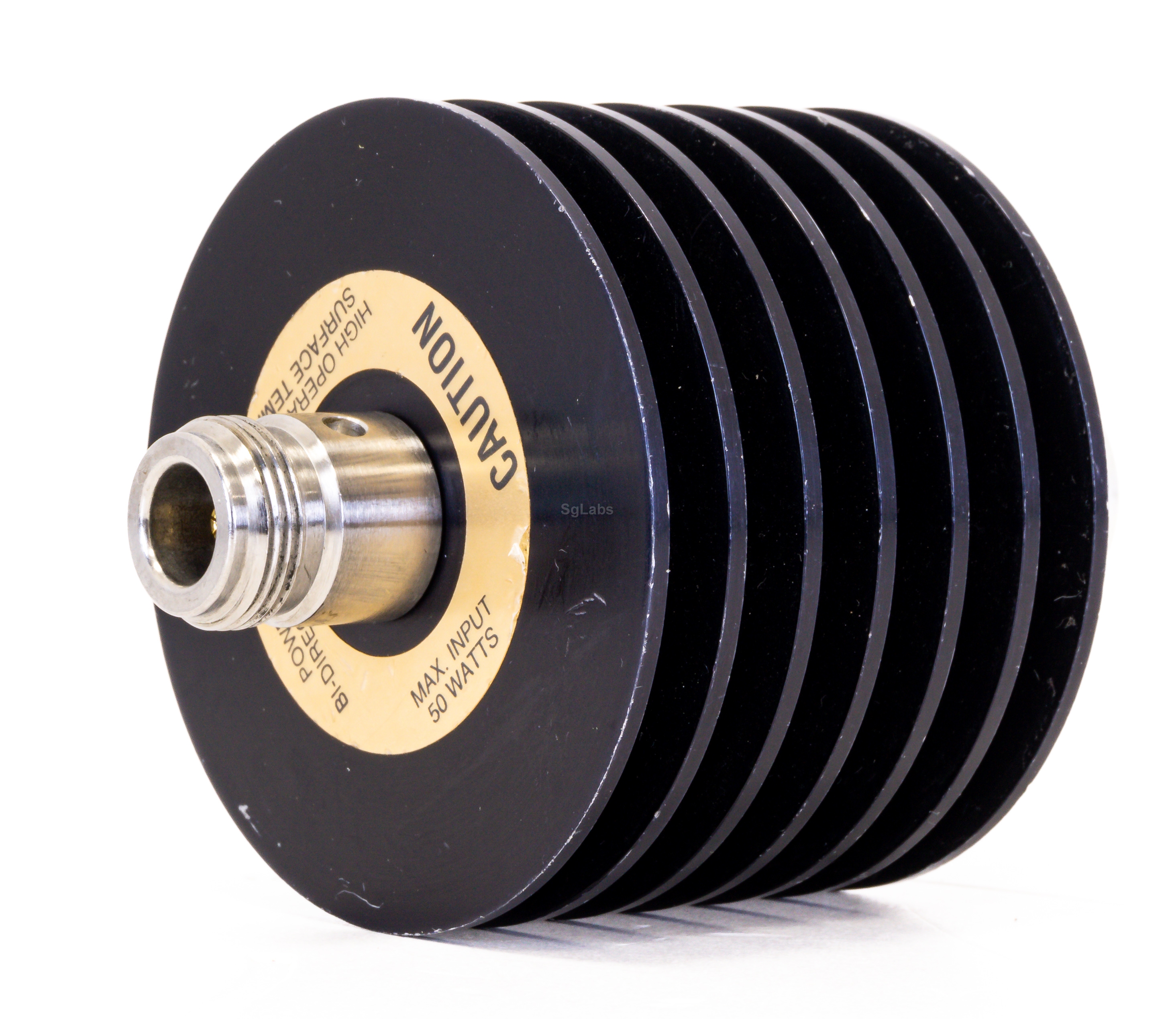

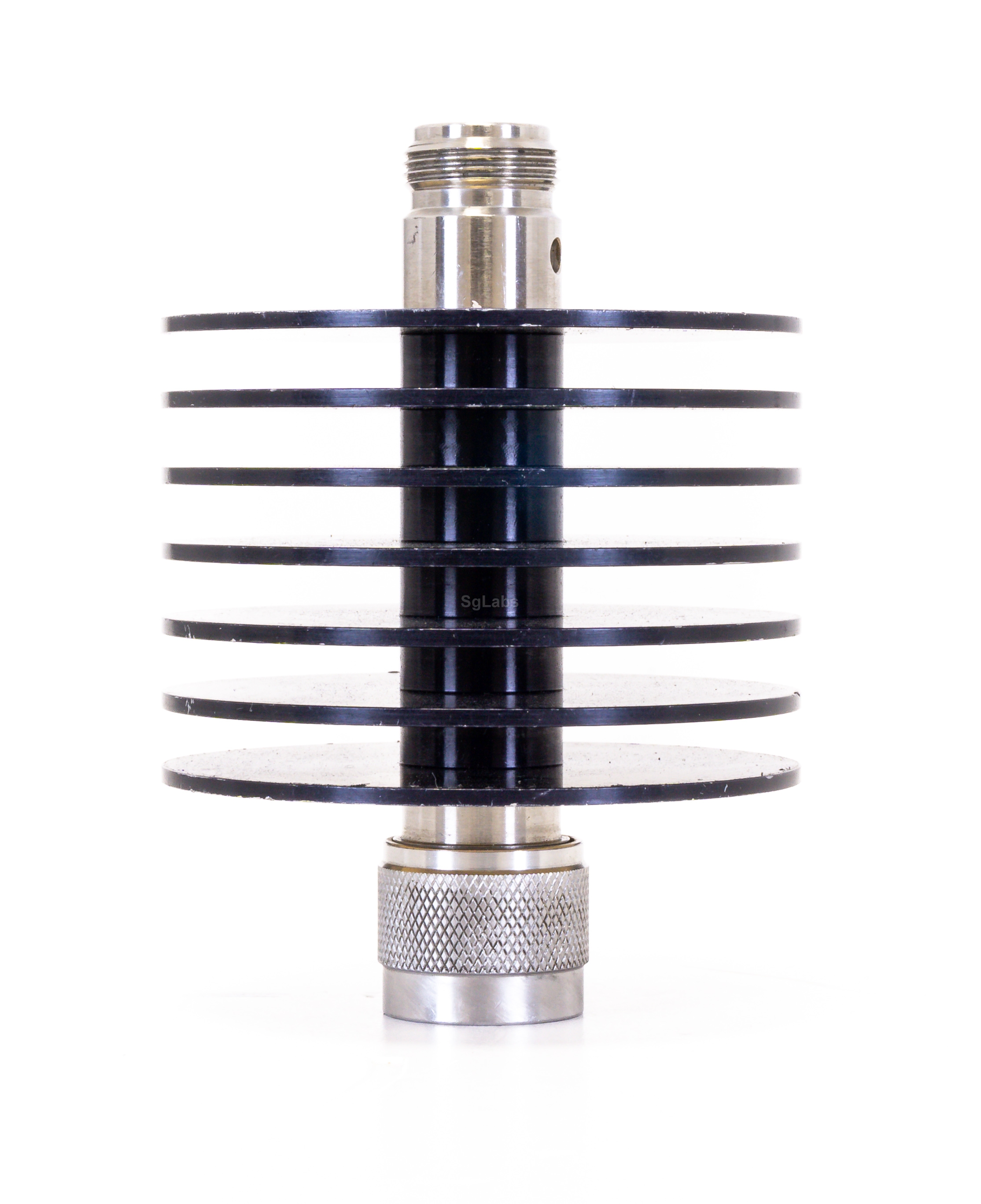

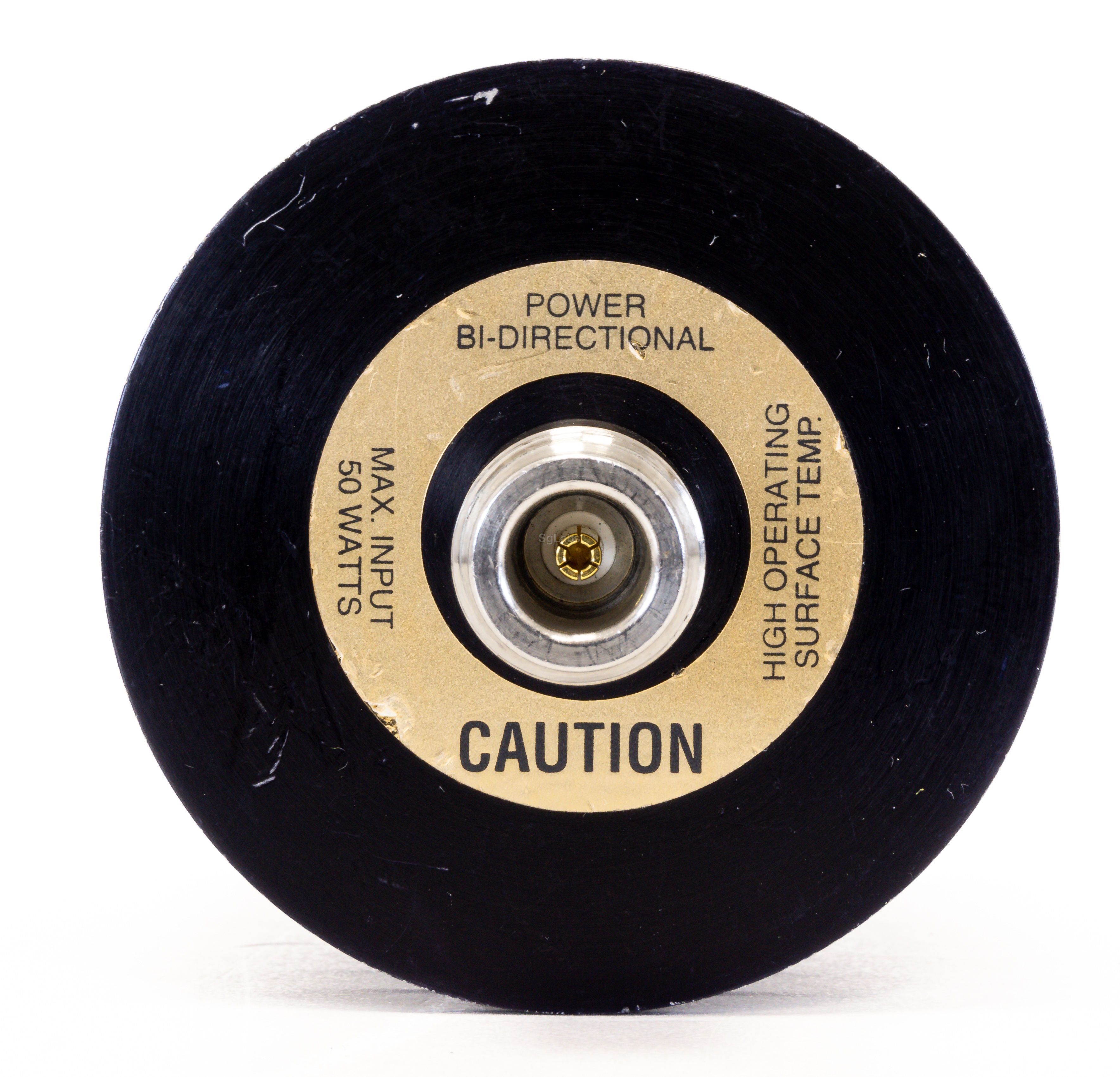

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 42N50A-30 coaxial fixed attenuator provides 30 dB attenuation and a 50 watt power rating for high power measurements.
Features
  • Nominal Impedance: 50 Ohm
  • Frequency Range: DC – 18 GHz
  • VSWR: 1.20 DC – 8 GHz 1.25 8-12.4 GHz 1.35 12.4-18 GHz
  • Attenuation: 30 dB
  • Attenuation Accuracy: +/- 1 dB
  • Power Rating: 50 Watt average to 25°C
  • Attenuation: 30 dB
  • Connector: Nm Nf
  • Max. Frequency: 18 GHz
  • Min. Frequency: DC
  • Max. power: 50 W
