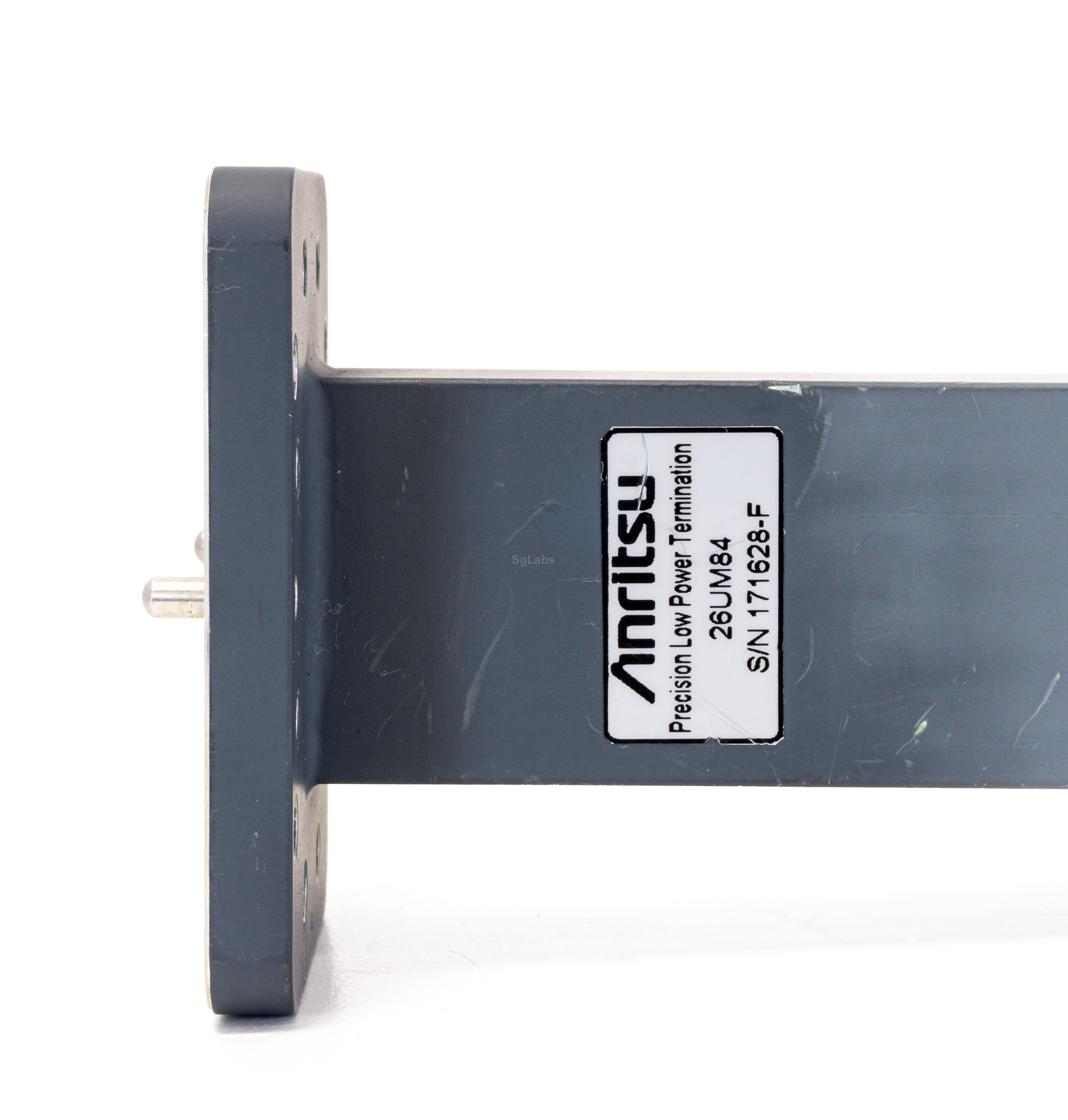

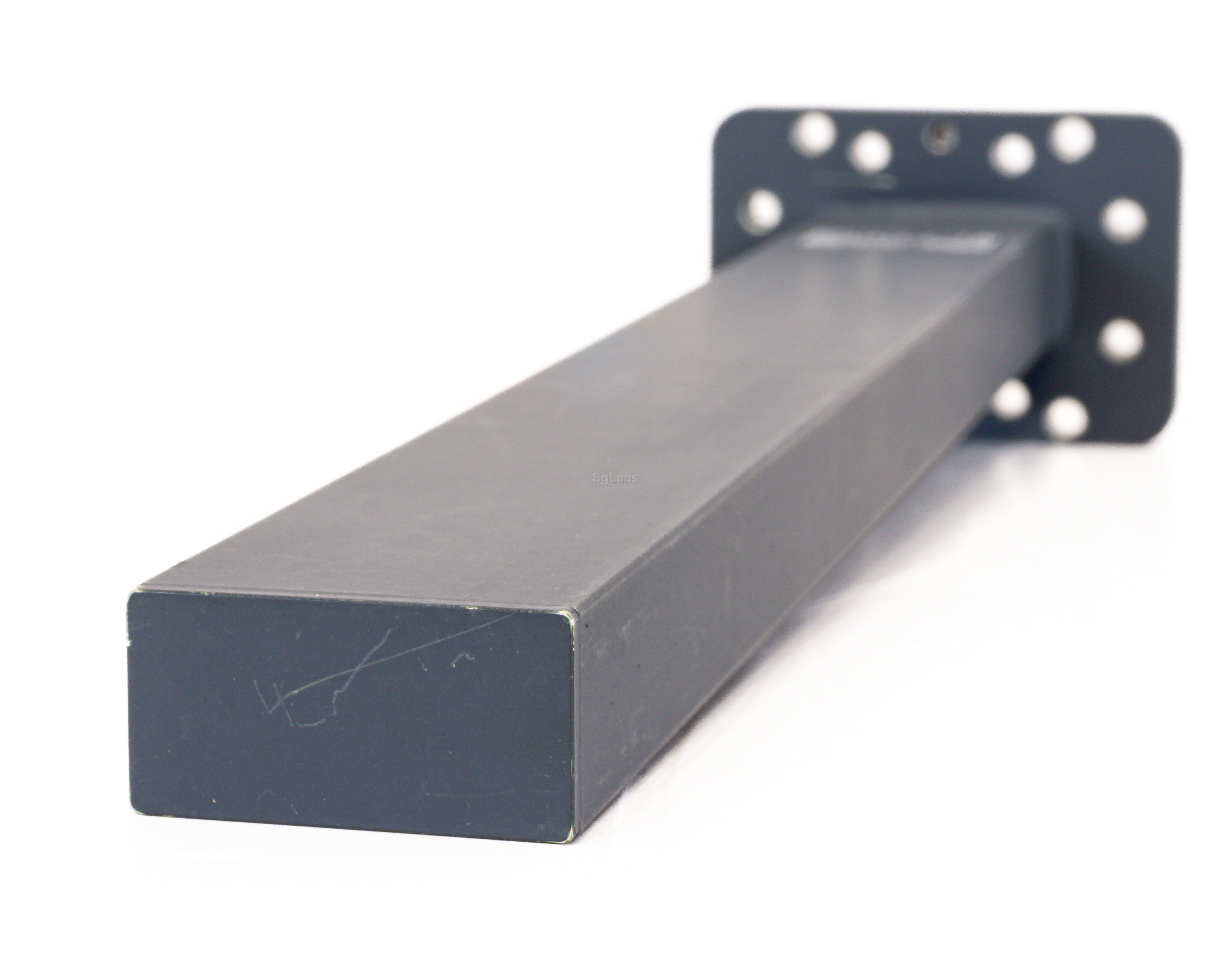

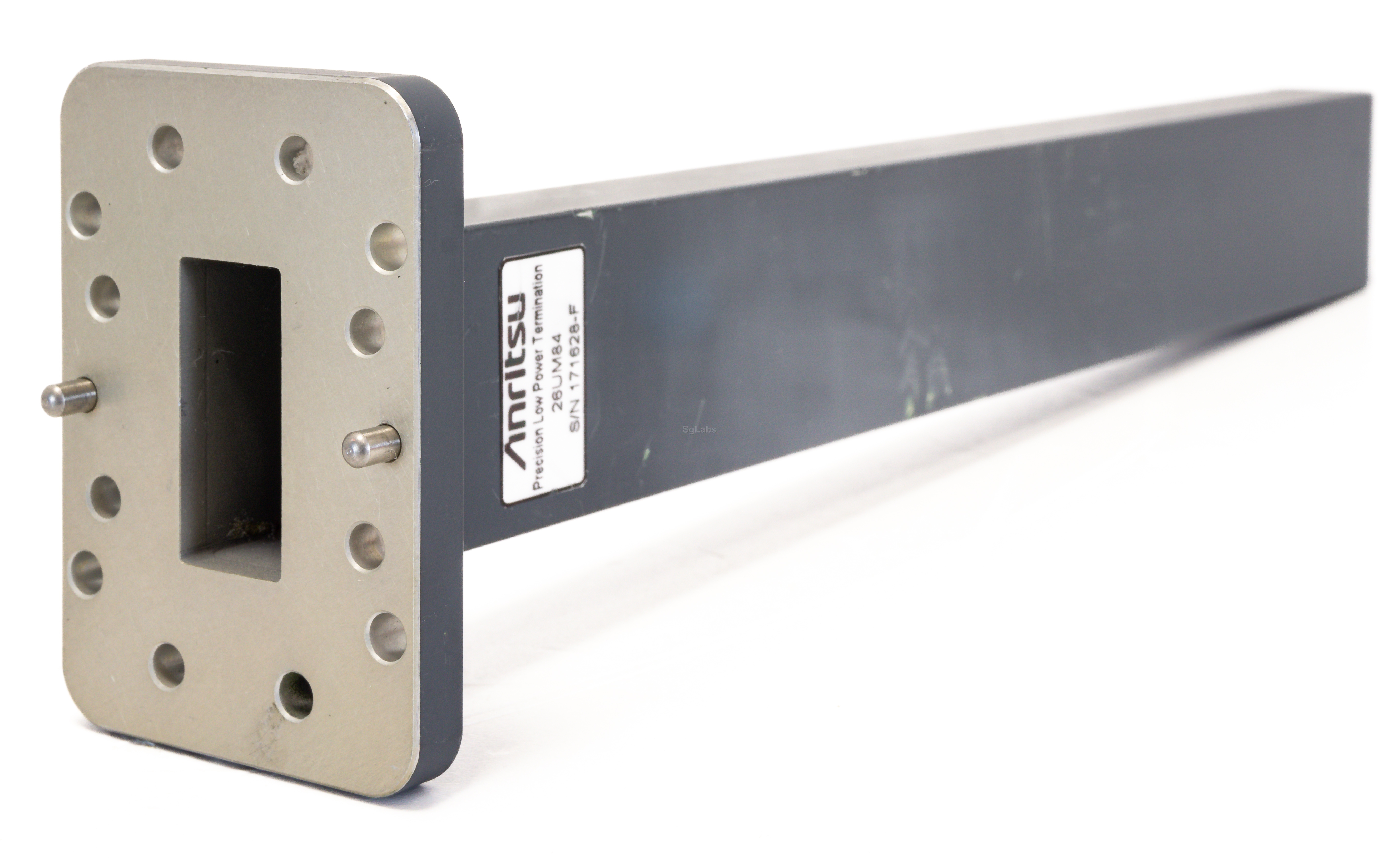

Anritsu 26UM84 Precision Termination WR112 7.05 - 10 GHz
You are here: RF Component » Calibration kit
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Series 26 are precision loaded, band waveguide components used for waveguide calibrations. Waveguide calibrations require an alternative calibration than a coaxial SOLT (Short-open-load-thru). Waveguide calibrations using precision load include SSLT (Short-short-load-thru) and LRL/LRM (Line-Reflect-Line/Match).
Features
- The 26 series Precision Load are fitted with “precision flanges”
- Fully compatible with standard flanges while maintaining accuracy and repeatability
- The precision loads are designed to provide a very low VSWR footprint over the desired waveguide frequency range.
- All Precision Load components are RoHS compliant.
