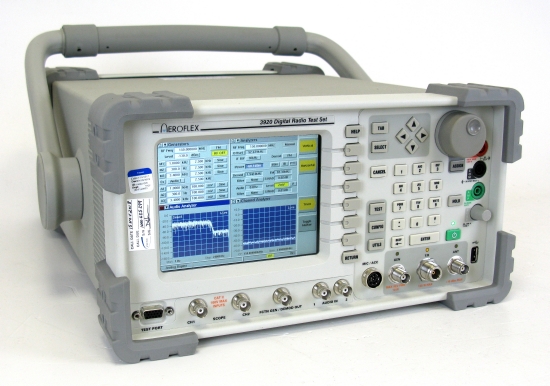

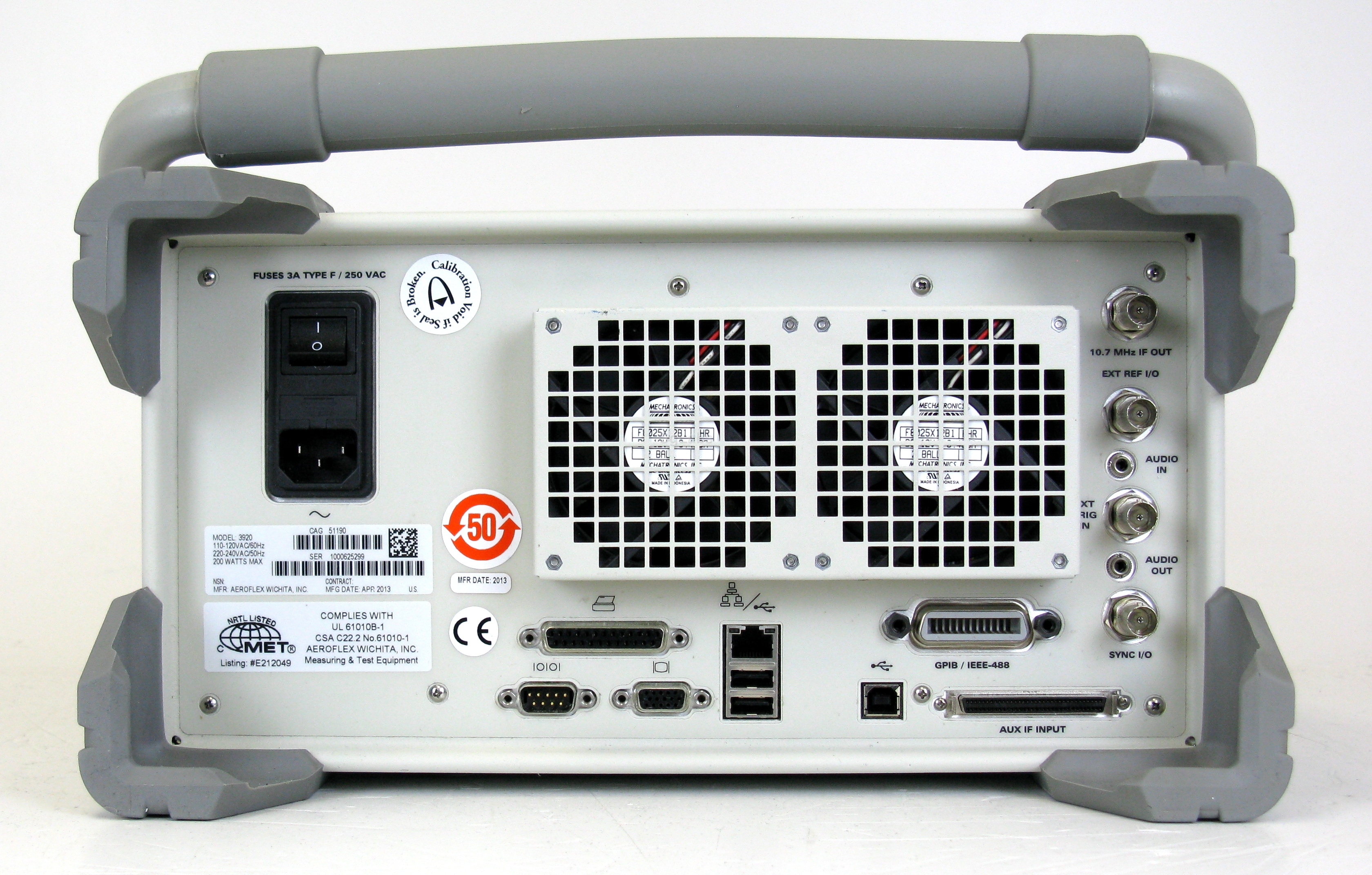

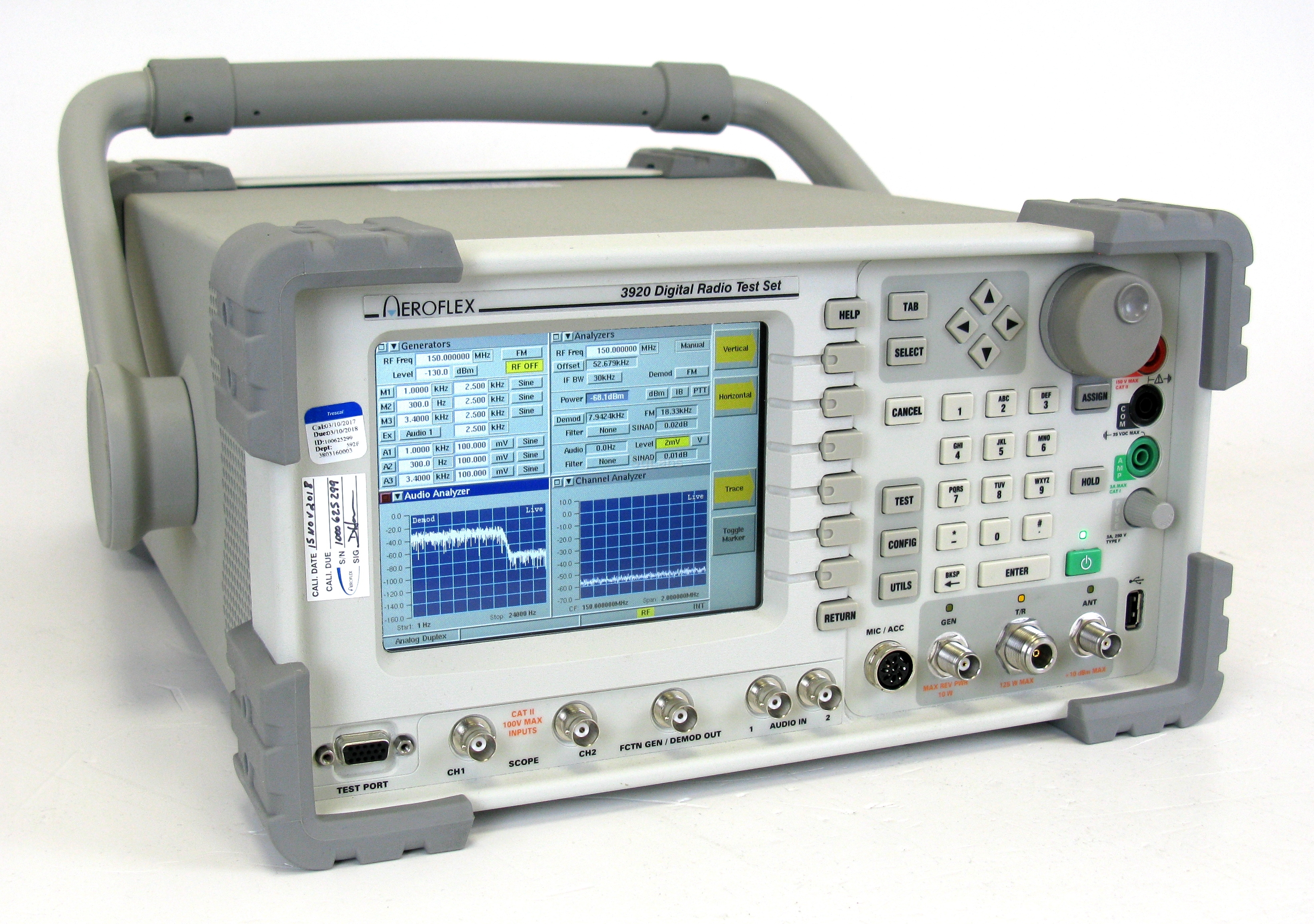

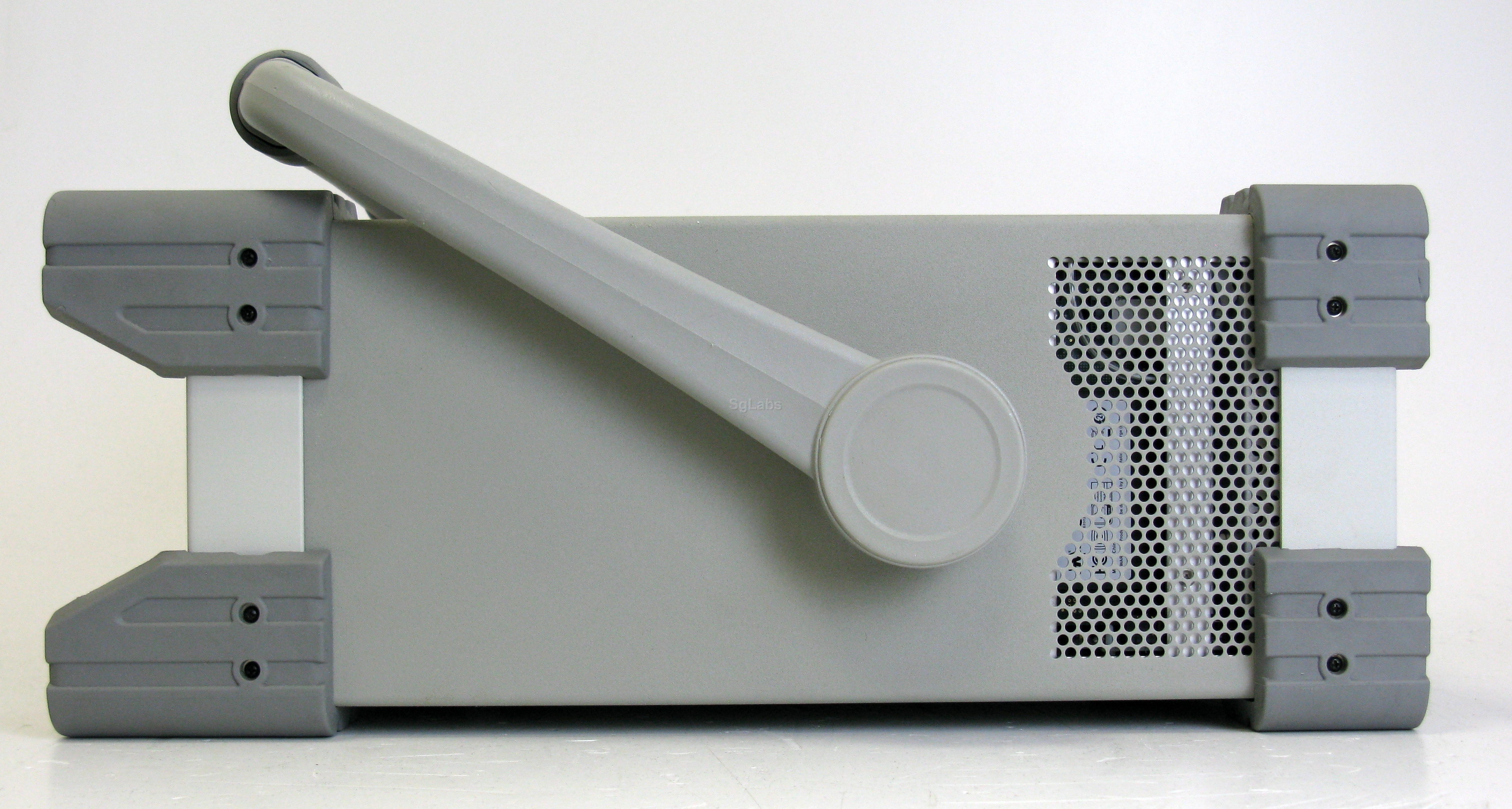

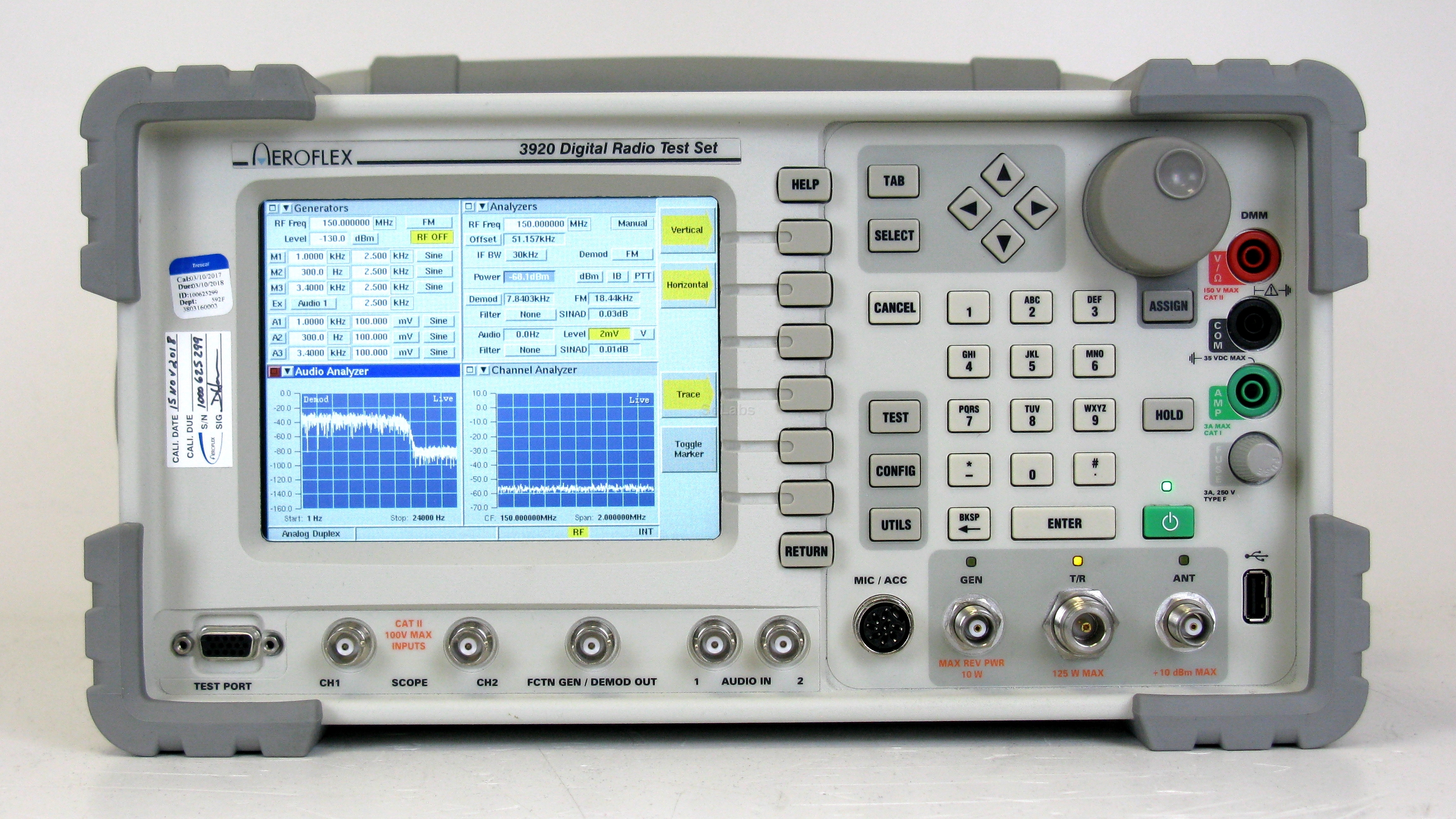

Aeroflex 3920 Universal Test set
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 3920 is the latest radio test solution from Aeroflex for engineering, production and field service applications. The instrument provides a comprehensive range of general purpose analog measurement facilities as well as advanced  digital test options. The 3920 includes many standard features as well as a host of optional test capabilities and digital personalities.
The 3920 standard features include:
• 1 GHz frequency range
• High performance FM/AM/SSB analog duplex test capabilities
• Sensitive receiver with built-in pre-amp for off air measurements
• Color coded pass/fail results
• -140 dBm (typical) DANL spectrum analyzer with 8 markers
• Dual-Channel oscilloscope to 4 MHz
• Full audio analysis for AF level, frequency, SINAD and distortion measurements
• Three high accuracy audio modulators/function generators
• Three high accuracy audio baseband generators
• Tone encode and decode functionality including DTMF, DCS, tone remote, 2-tone sequential, and 5/6-tone
• GPIB, Ethernet, USB and RS-232 interfaces
• HP/Agilent 8920B remote emulation
  • Max. Frequency: 1 GHz, 2.7GHz with options
