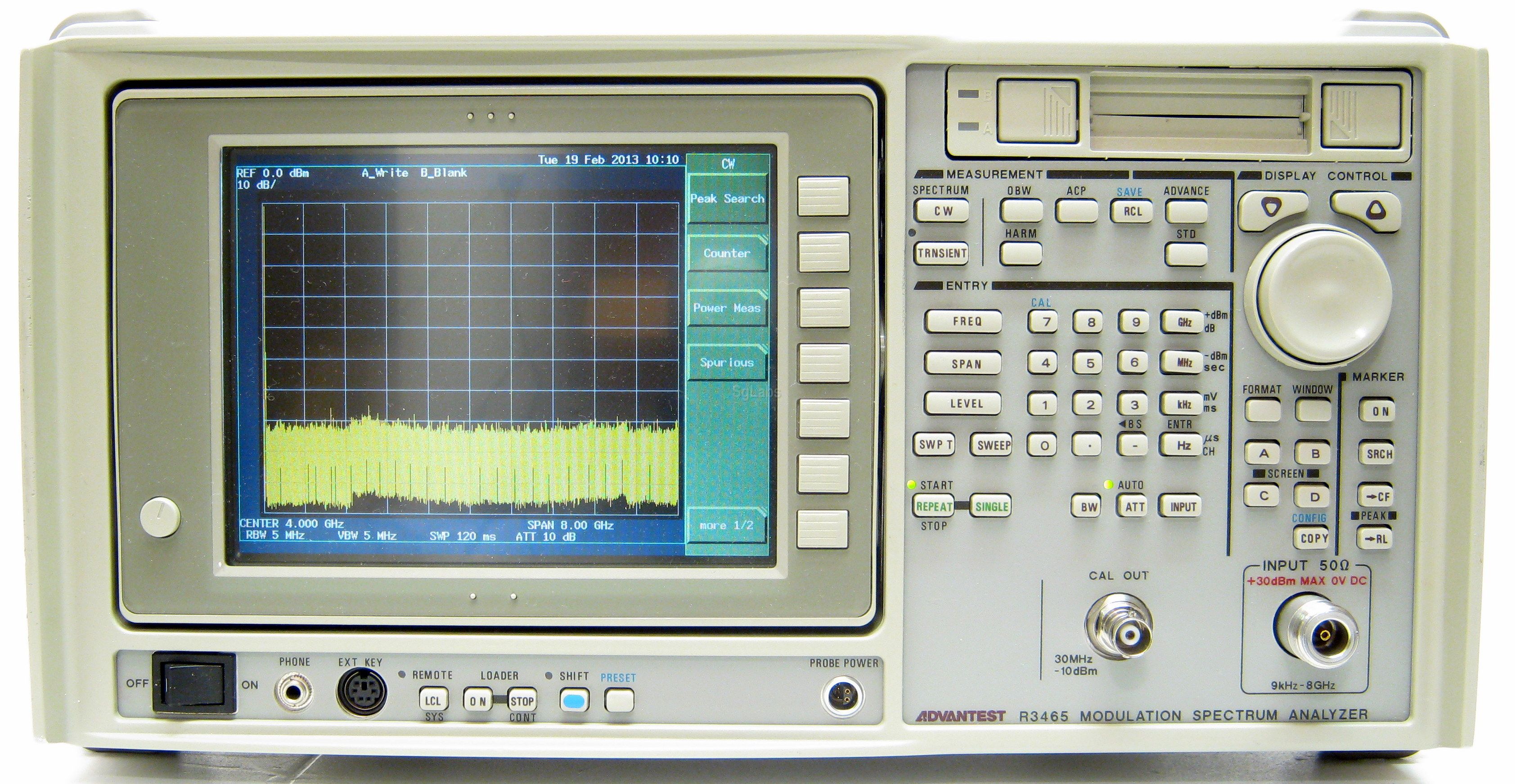

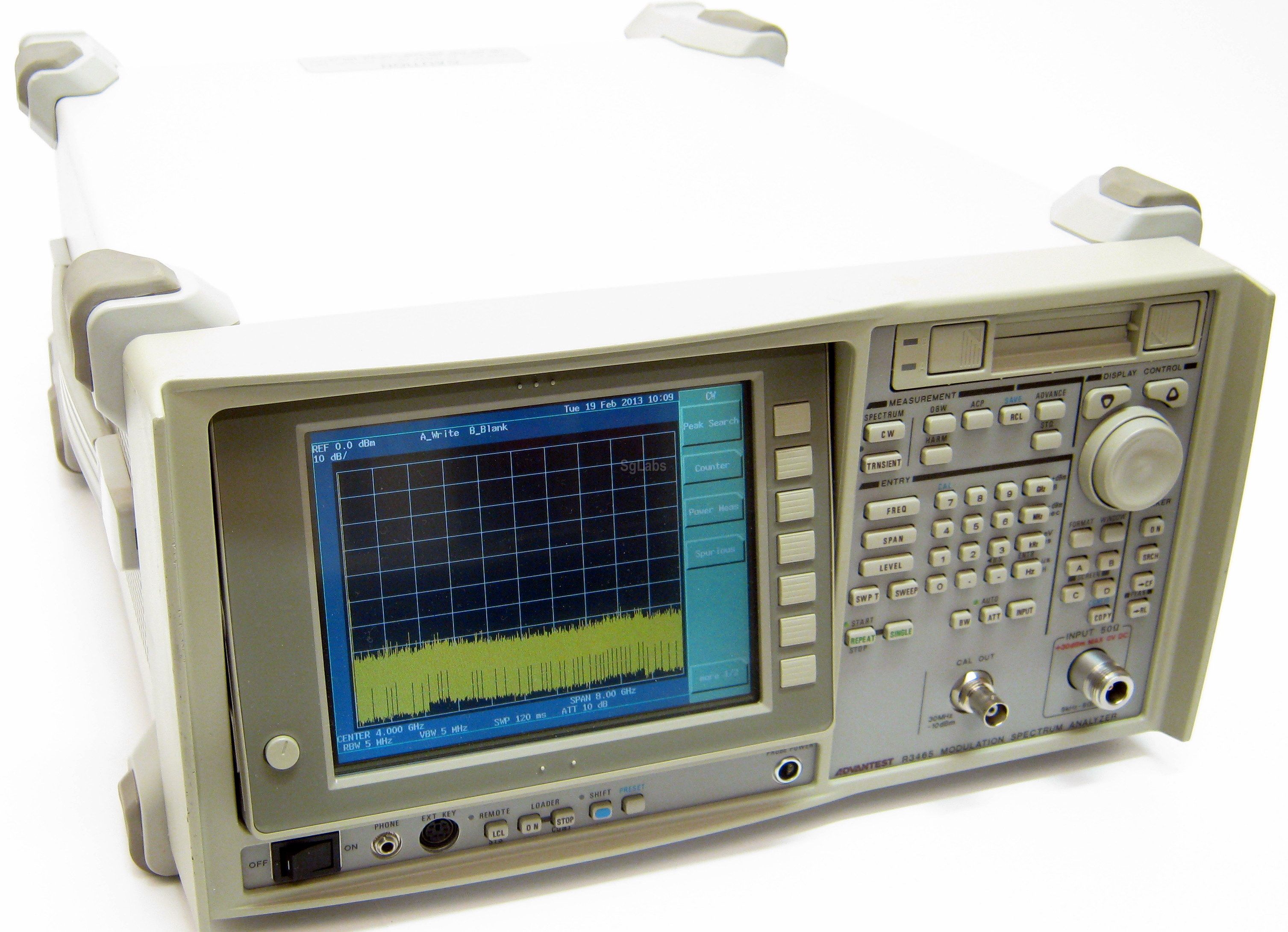

The
R3465 is a
modulation spectrum analyzer that goes beyond traditional spectrum analysis. The
8 GHz frequency response provides coverage for a full range of digital radio frequencies and a high-performance spectrum analyzer armed with capabilities sufficient to support detailed waveform analysis. The newly developed high-speed settling synthesizer significantly reduces blanking time for narrow-band sweep (span of 5 MHz or less), thus enabling truly high-speed measurement. A high-frequency sweep accuracy of 1% or less, frequency stability of 2 x 10-8 /day, and a built-in preselector starting from 1.7 GHz permit harmonic measurements with a dynamic range of 100 dBc. In addition to these powerful spectrum analyzer functions, the R3465 also offers
built-in modulation analysis for a variety of digital mobile communication standards.
The 6.5 in.
TFT color LCD display provides powerful support for multi-window operations. It also incorporates a 15-degree adjustable tilt mechanism for easy viewing under a variety of lighting conditions.
- Dynamic Range 1 dB
- Frequency Range 9 kHz - 8 GHz
- Input Impedance 50 ohm
- Resolution Bandwidth 300 Hz - 3 MHz
- Video Bandwidth 1 Hz - 3 MHz
- Marker counter resolution 1 Hz - 1 kHz
- AM-FM Demodulator
- For PHS, PDC and NADC standards (GSM/DCS1800/DCS1900/DECT/CDMA Measurement optional)
- Dual mode analysis
- Spectrum analyzer mode
- Digital transmission tester mode
- Built-in digital modulation analysis function
- Menu operation automatically set standard parameters, STD mode and measurement function keys
- Compact, Lightweight (17 kg), 6.5 inch TFT color LCD
- 2 slots memory card drive
