Advantest, R3361B

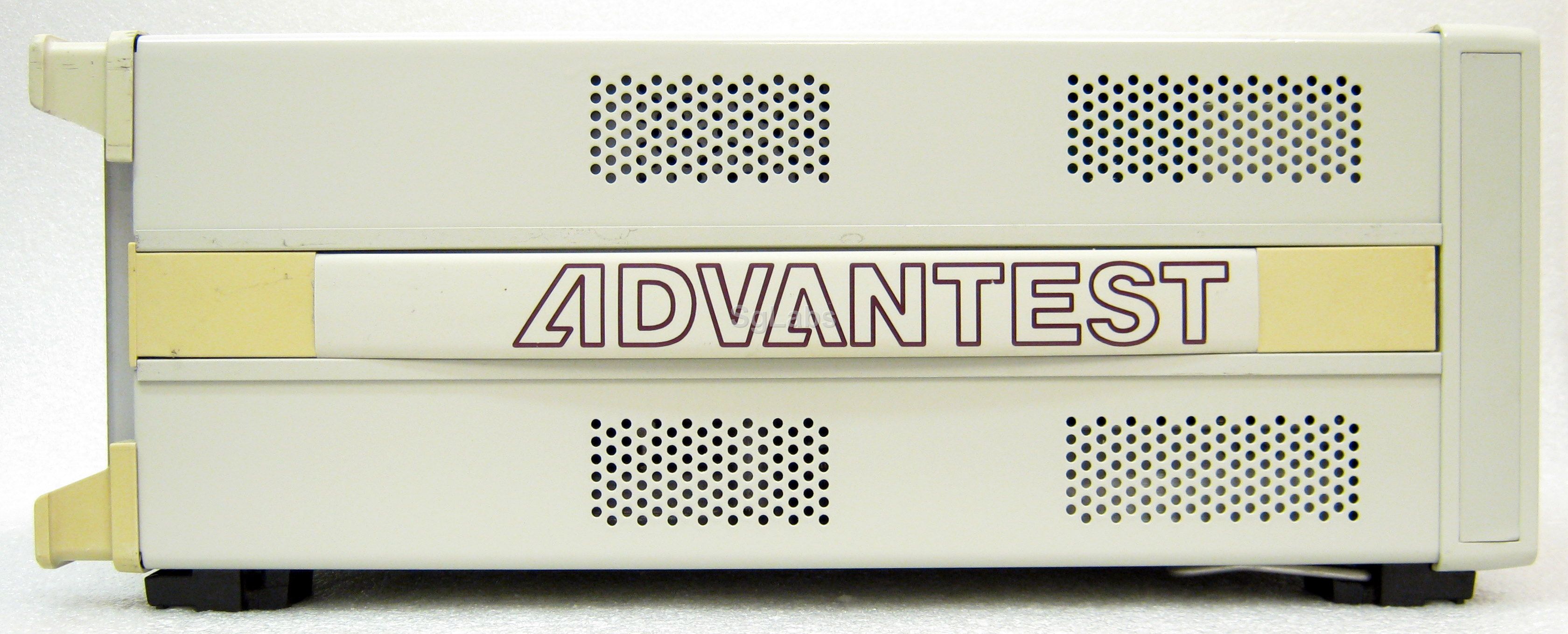

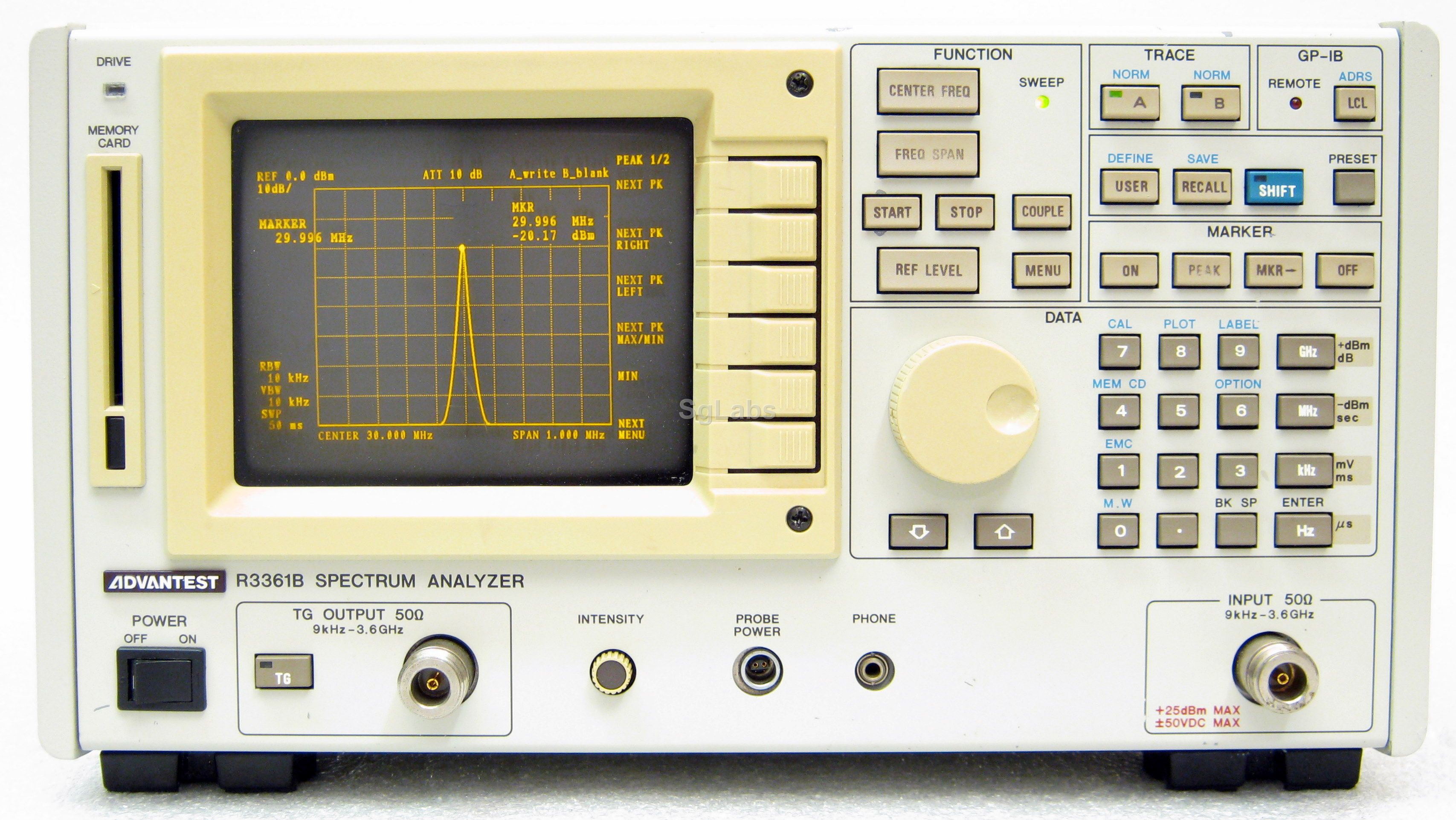

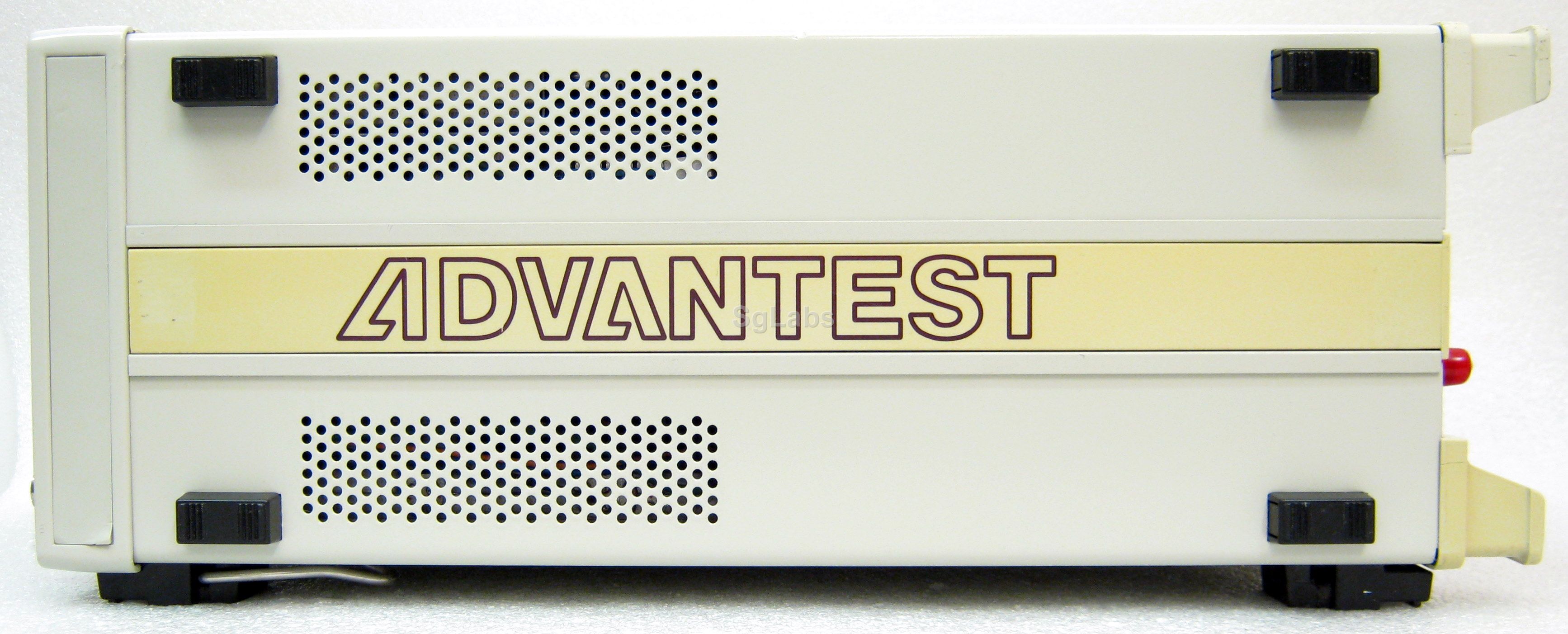

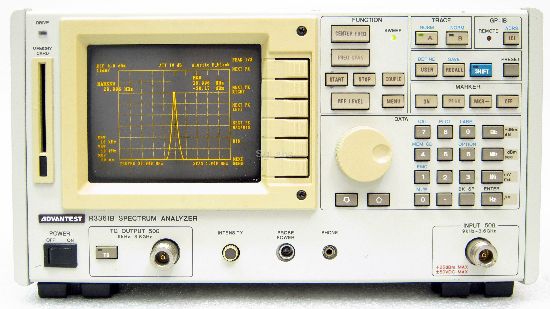

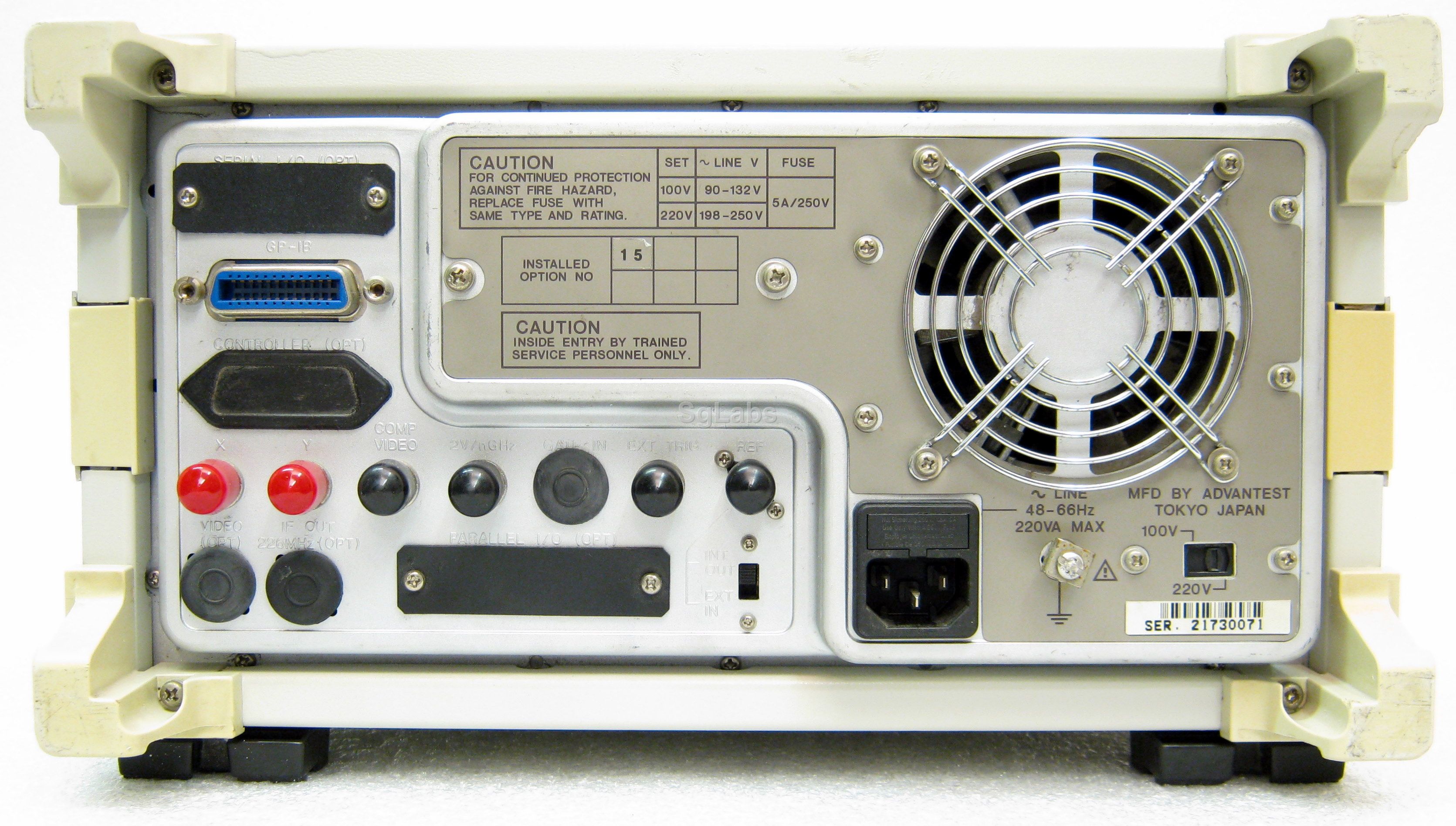

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The R3361B is a compact and lightweight spectrum analyzer with uses a synthesized technique to cover wide frequency bands. Total level accuracy of 1 dB. 1 Hz resolution synthesizer and frequency counter. Unique sound monitor and marker pause modes. Manual sweep function for spot measurement. 120 dB dynamic range CRT display. Create your own unique menus. Fast measurement with measuring window function.


The Tracking Generator on the Advantest R3361B is Standard

  • Dynamic Range: -130 dBm - +25 dBm
  • Frequency Range: 9 kHz - 3.6 GHz
  • Frequency Reference Accuracy: +/- .2ppm
  • Input Impedance: 50 ohms
  • Other Features: -105 dBc/H
  • Residual FM: Tracking G - -101 dBc/H
  • Resolution Bandwidth: 30 Hz - 1 MHz
  • Video Bandwidth: 1 Hz - 1 MHz
  • Compatibility: Filtri EMI
  • Demodulator: AM-FM compreso di serie
  • Display: CRT monocromatico
  • Max. Frequency: 3.6 GHz
  • Min. Frequency: 9 kHz
  • Max. Level: +25 dBm
  • Min. Resolution: 30 Hz
  • Tracking generator: internal
