Product description

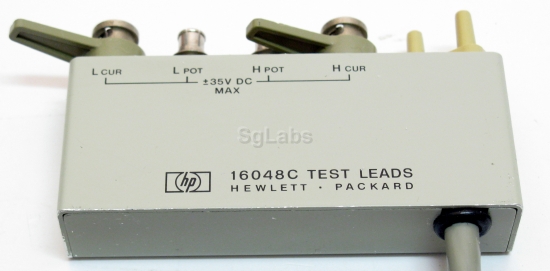

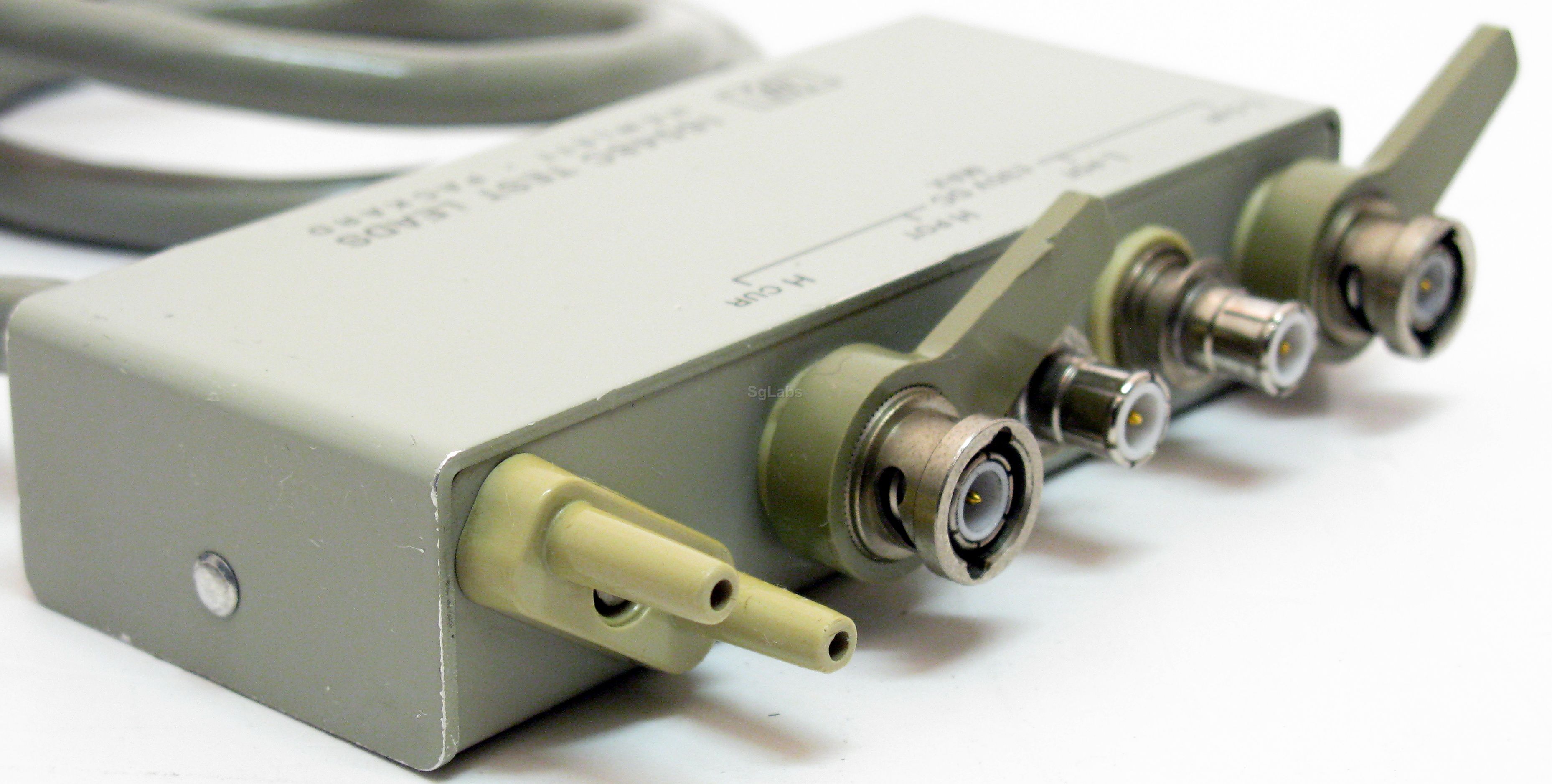

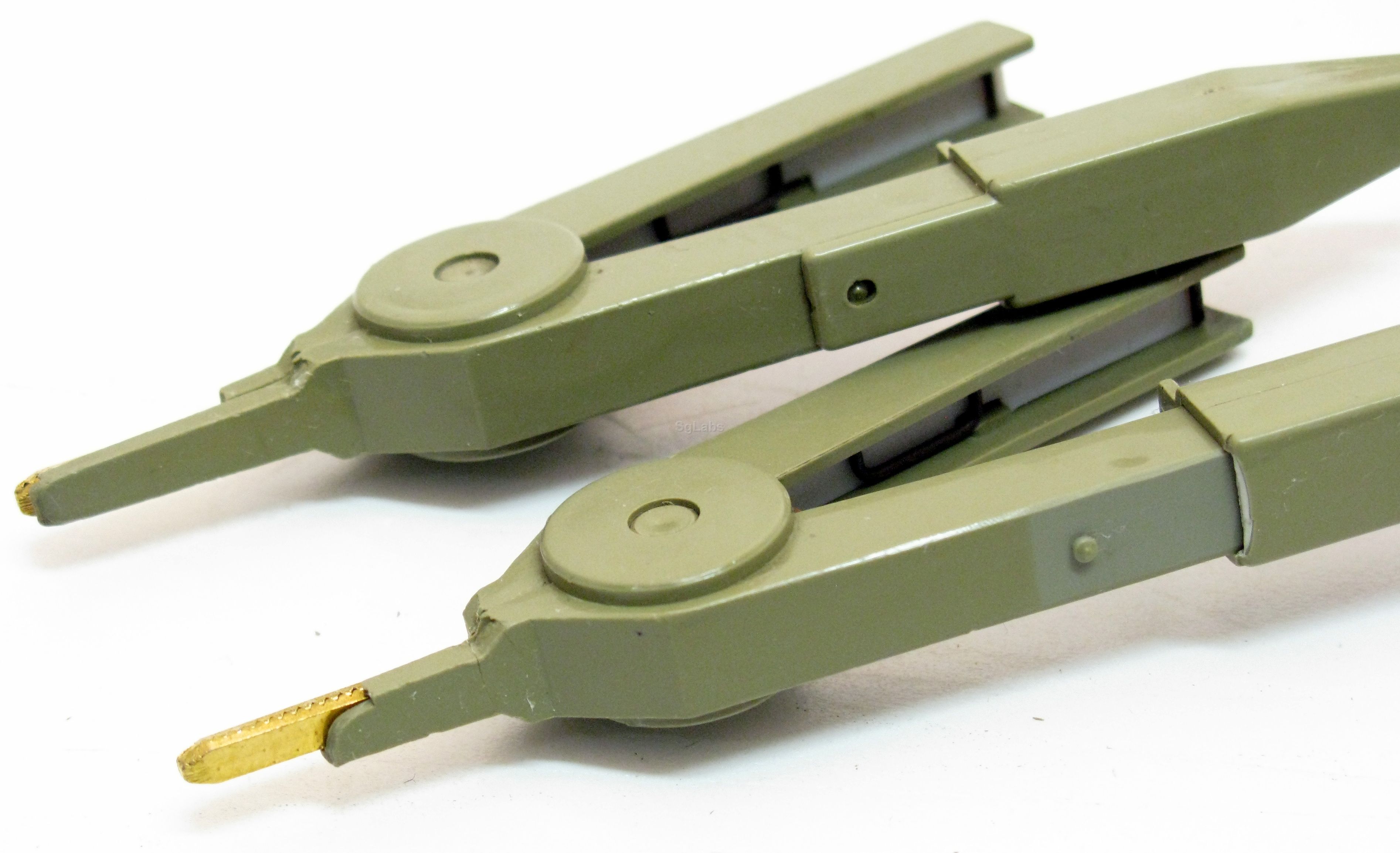

The HP 16048C consists of a direct attachment, 4-terminal pair type fixture which is equipped with two large, insulated alligator clips. The alligator clips make it possible to measure odd-shaped components that cannot be measured with conventional test fixtures. Maximum frequency is 100 kHz. Cable length is approximately 1M.
Features
The Agilent 16048C Test Fixtture is designed for use with:
- Agilent 4192A
- Agilent 4274A
- Agilent 4275A
- Agilent 4276A
- Agilent 4284A
- Frequency: DC to 30 MHz
- Maximum voltage: ¡35 V peak max (AC+DC)
- Operating Temperature: 0 to 55 degrees C
- Terminal Connection: BNC, 4 terminal-pair
- Cable tip: Alligator Clips
- Cable length: 1.0 m (from connector to cable tip)
- Frequency range: DC-30MHz
