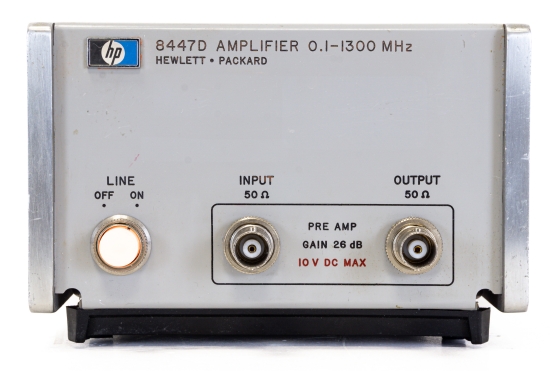

HP Agilent Keysight 8447D RF Amplifier 100 kHZ 1300 MHz
You are here: Amplifier » Signal
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 8447D is a low-noise, high gain amplifier used to improve the sensitivity of counters, spectrum analyzers, RF voltmeters, EMI meters, power meters and other devices. They will also increase the maximum power available from a signal generator or sweeper.
Features
- Gain: > 25 dB
- Noise figure: < 8.5 dB
- Output power for 1 dB
- Gain compression: > + 7 dBm
- Max. Frequency: 1300 MHz
- Min. Frequency: 0.1 MHz
- Gain: 26 dB
- Max. power: 7 dBm
Price
€ 290,00
