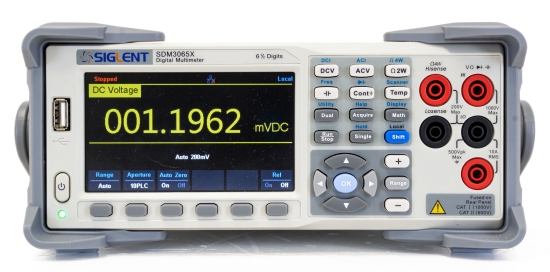

SIGLENT SDM3065X 6 1⁄2-digit benchtop digital multimeter with standard interface: USB device, USB host, LAN
Product Overview
SDM3065X is a 6 1⁄2-digit (2,200,000 counts) digital multimeter that incorporates a dual display and is especially suitable for automatic, multifunction and high-precision measurement needs.
Main Feature
- 4.3" TFT LCD, 480 * 272
- 61⁄2 true digit reading resolution (2,200,000 counts)
- 1Gb Nand flash size, mass storage configuration file and data file
- True RMS AC voltage and AC current measurement
- Support dual display, Chinese and English menu
- File management (support U-disk and local storage)
- Built-in cold terminal compensation for thermocouple
- With easy, convenient and flexible sensor measurement control software: EasyDMM
- Standard interface: USB device, USB host, LAN (optional accessories: GPIB and scanner card)
- Built-in guidance system makes information acquisition easy
- Support remote control by commands and compatible with mainstream multimeter commands
- Support intelligent laboratory management system based on BS and LAN framework.
Main mathematical function
- Min / Max / Average
- dBm, dB
- Pass / Fail
- Relative
- Deviation standard
- Wait
- Histogram
- Trend Graph
- Bar Graph
What is VXI-11?
VXI-11 is a TCP/IP instrument protocol specification defined by the VXIbus Consortium. Since LXI instruments are Ethernet-based, the TCP/IP interface allows you to communicate with an LXI instrument using the VXI-11 interface.
Communicating with the LXI instrument
Many LXI instruments communicate over a LAN using one of two protocols, VXI-11 and HiSLIP. Both of these protocols provide mechanisms for sending ASCII commands, such as Standard Commands for Programmable Instrumentation (SCPI), along with other familiar GPIB operations.
SIGLENT SDM3065X Digital Multimeter 6.5 digit
You are here: MULTIMETER » Bench Digital
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features
- DC Voltage: 200mV ~ 1000V
- DC Current: 200μA ~ 10A
- AC Voltage: True-RMS, 200mV ~ 750V
- AC Current: True RMS, 200μA ~ 10A
- 2/4-Wire Resistance: 200Ω ~ 100MΩ
- Capacitance: 2nF ~ 100mF
- Continuity Test: The range is fixed at 2kΩ
- Diode Test: The adjustable range is 0 ~ 4V
- Frequency Measurement: 3Hz ~ 1MHz
- Period Measurement: 1μs ~ 333.33ms
- Temperature: Support TC and RTD sensor
- DC Current: 200μA ~ 10A
- AC Voltage: True-RMS, 200mV ~ 750V
- AC Current: True RMS, 200μA ~ 10A
- 2/4-Wire Resistance: 200Ω ~ 100MΩ
- Capacitance: 2nF ~ 100mF
- Continuity Test: The range is fixed at 2kΩ
- Diode Test: The adjustable range is 0 ~ 4V
- Frequency Measurement: 3Hz ~ 1MHz
- Period Measurement: 1μs ~ 333.33ms
- Temperature: Support TC and RTD sensor
- AAC Max: 10A
- ADC Max: 10A
- Digit: 6.5
- VAC Max: 1000V
- VDC Max: 750V
Price
€ 370,00
