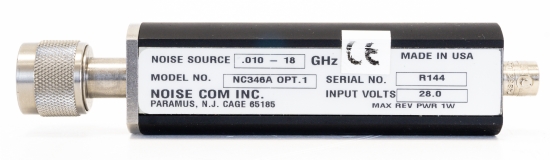

NoiseCom NC346A Noise Source 6dB ENR
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Noisecom's NC346 Series is designed for precision noise figure measurement applications. Each module's low VSWR reduces multiple reflections and significantly increases the measurement accuracy for most noise figure test configurations.
Features
  • Frequency Range: 0.01 - 18 GHz
  • VSWR: 1.15:1 (up to 5 GHz) - 1.25 (5-18 GHz)
  • ENR: 5-7 dB
  • Connector: SMA - 3.5mm - N
  • ENR: 5-7 dB
  • Max. Frequency: 18 GHz
  • Min. Frequency: 10 MHz
