The HP / Agilent E4433A digital RF signal generator provides a wide range of digital modulation capabilities, in addition to a comprehensive feature set and excellent analog performance. The first in a new generation of signal generators, it provides excellent modulation accuracy and stability, as well as unprecedented level accuracy. It is ideally suited to meet the demanding requirements of today's digital receiver test, component test and local oscillator applications. The innovative design of the HP / Agilent E4433A provides a flexible architecture that can be tailored to meet the changing demands of evolving markets. Lower initial cost, high reliability and a two-year calibration cycle, all minimize the cost of ownership. The HP / Agilent E4433A digital generator is designed for long-term dependability, which maximizes production throughput and uptime.

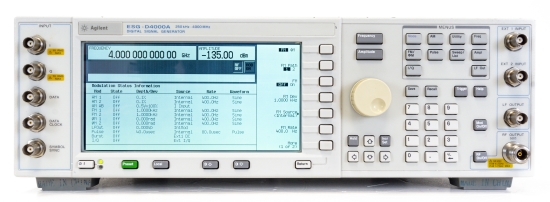

HP Agilent Keysight, ESG-D4000A E4433A
You are here: RF Signal Generator » Digital
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features
- 250 kHz up to 4 GHz
- Flexible, expandable architecture with upgrade path for options
- 4 GHz electronic attenuator, built-in function generator, superior level accuracy, and step sweep (frequency, power and list)
- Built-in digital modulation formats for DECT, GSM, NADC, PDC, PHS and TETRA (Option UN3/UN4)
- External analog I and Q inputs
- Versatile data generation with burst capabilities
- Wideband AM
- Max frequency: 4 GHz
- Minimum Frequency: 250 kHz
- Modulation: AM-FM-Phase-Pulse-Wideband AM-IQ
- Max. Output level: +13dBm
- Min. output level: -136dBm
- Resolution: 0.01 Hz
